SMD Component Counter Machine

SMD Component Counter Machine

we can provide smd part counter machines for counting spare parts.SMT components counting machine
CHIP COUNTER MACHINE
REEL COUNTER
COMPONENT COUNTER MACHINE
COMPONENT COUNTING MACHINE
Counting in both directions (left or right)
Divider from 1 to 19 (and multiplier 2,3,4 for 0402, 0201 and 01005 components)
Totalizer mode counting
Preset mode counting (with an audible alarm when the desired component number is reached)
Calibration test and self diagnostic procedure
Last counting value and condition memory
Models 8301.082 and 8301.084 with rechargeable battery, Barcode reader input, output for Printer/PC,
Watch, Datalogger with 500 counting records.
Maximum counting value: 899999 counts
Minimum lead diameter: 0.4mm
Axial component bandolier width: 55 - 110mm
Radial component bandolier width: max 18mm
Maximum component diameter : 14mm

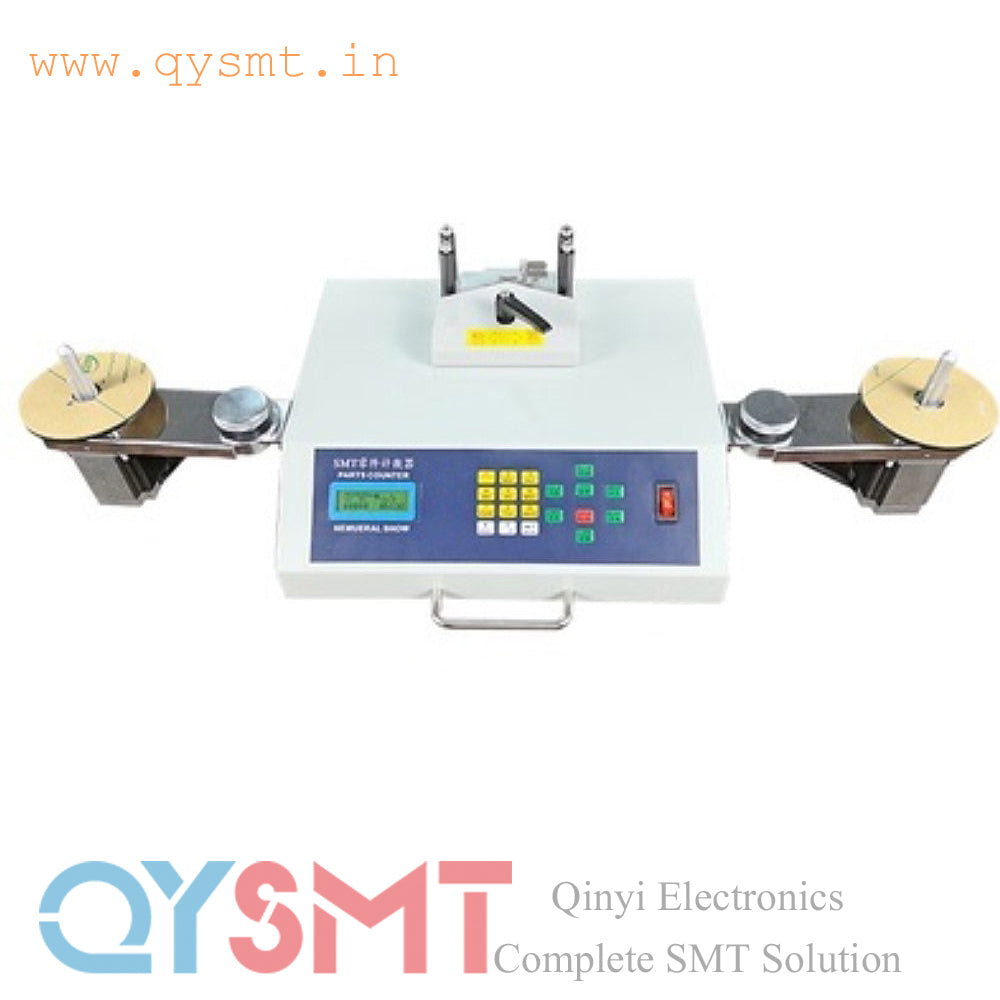

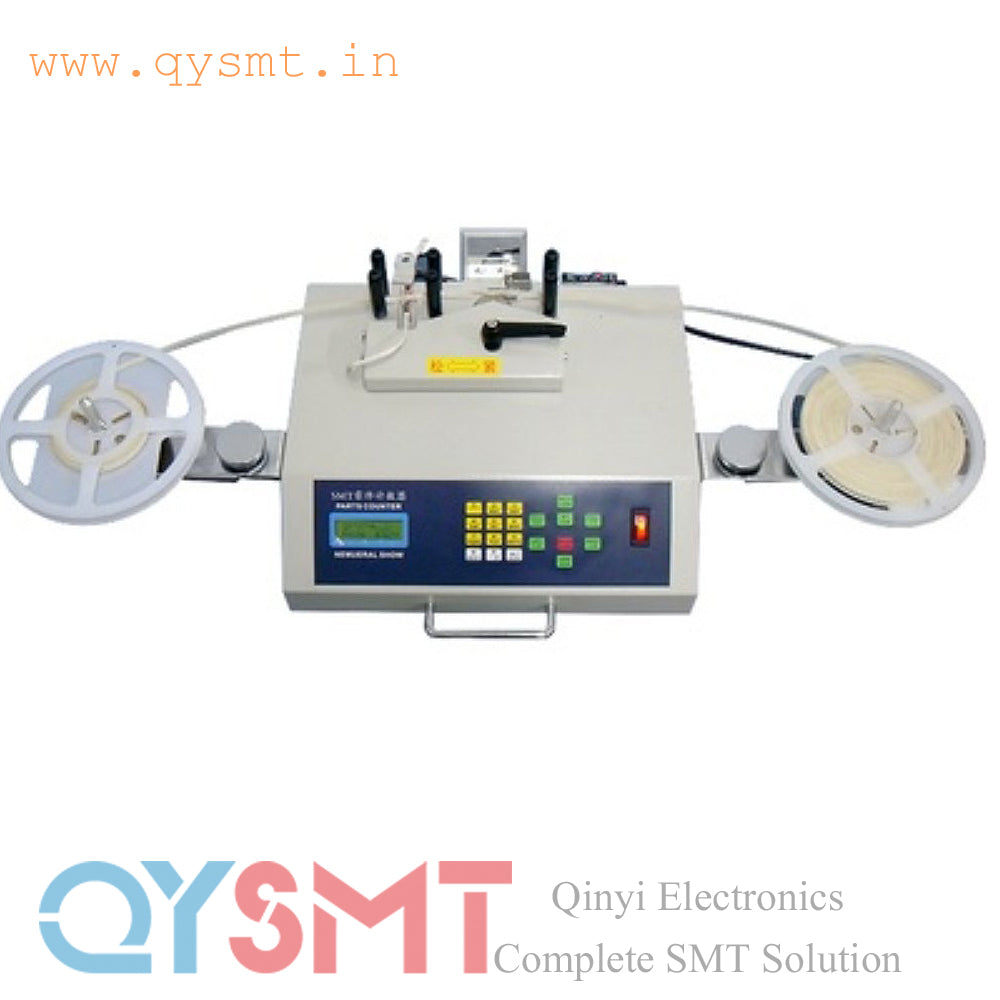

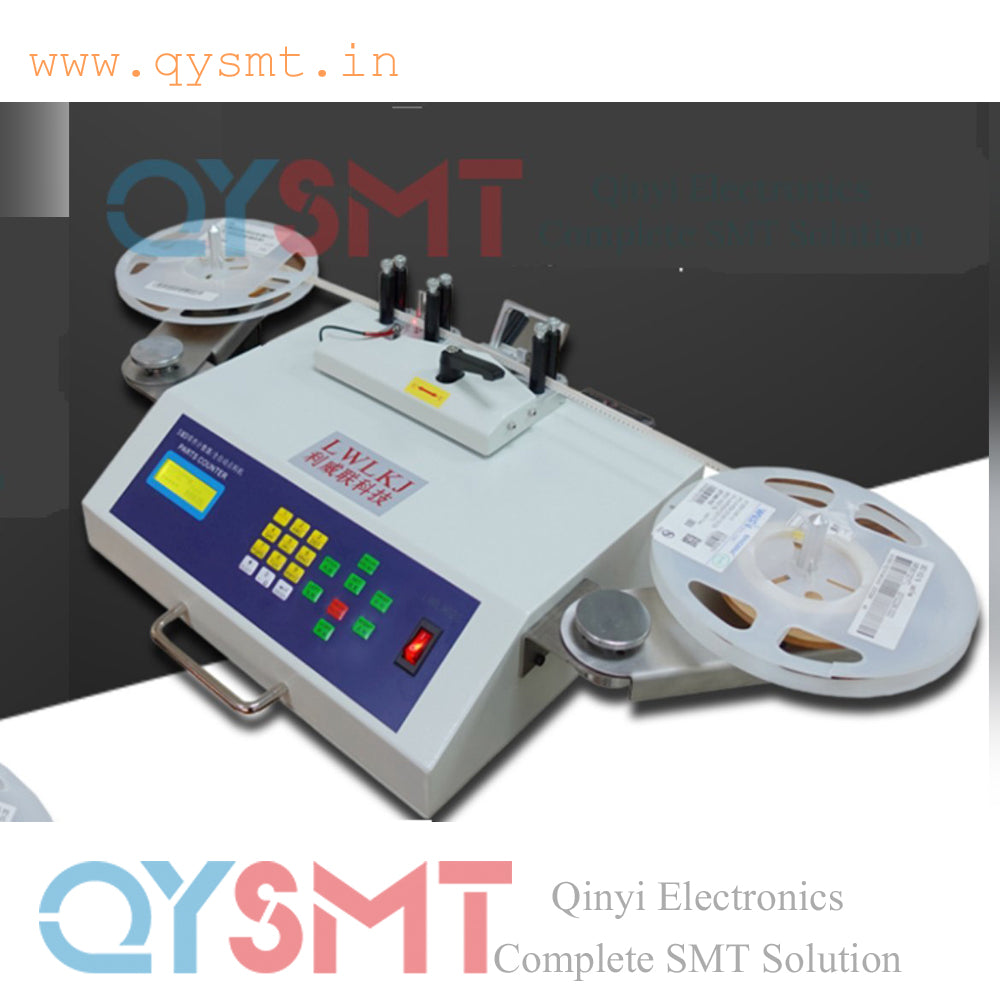

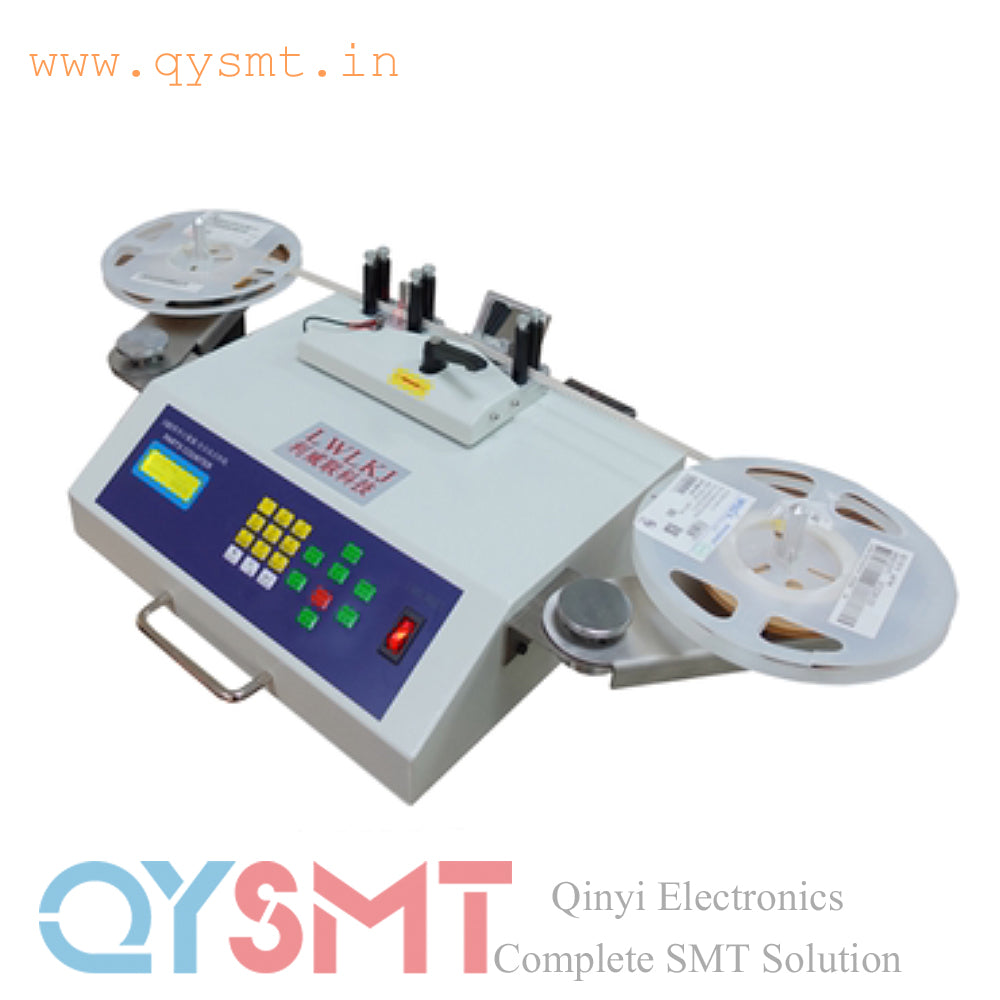

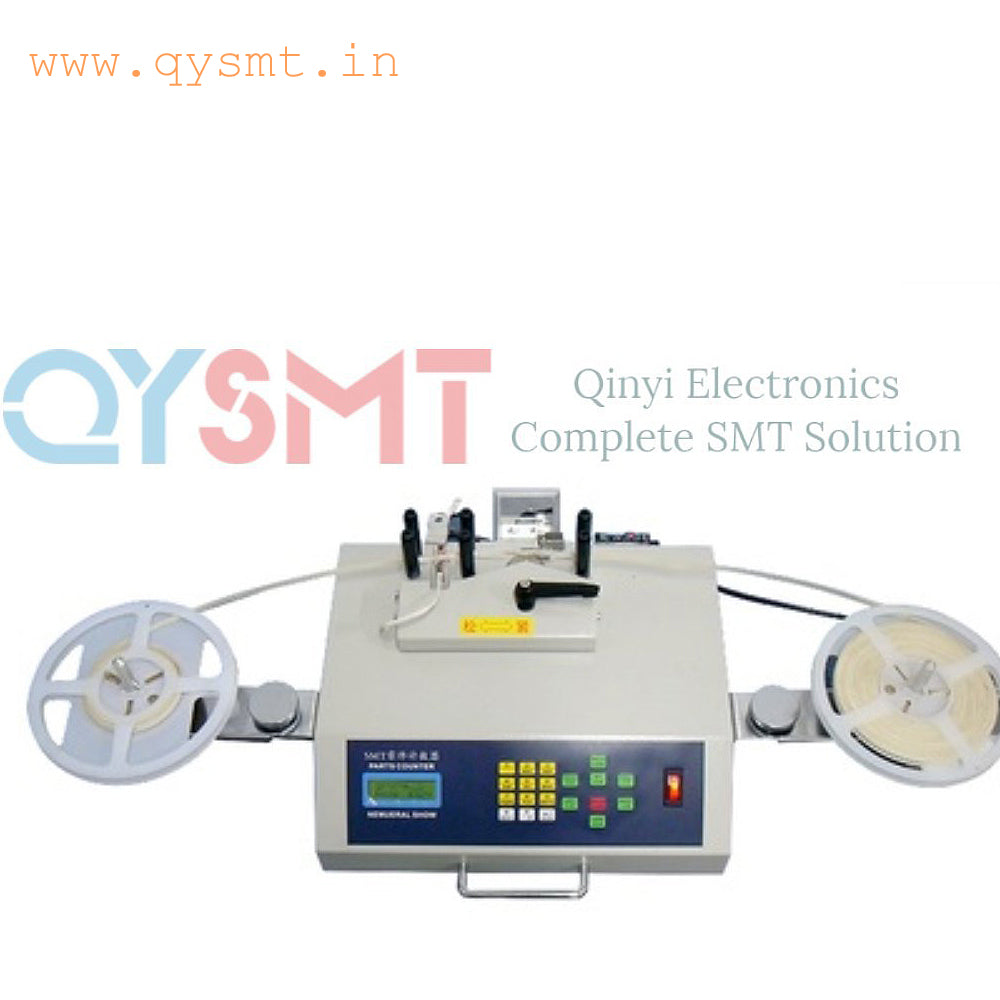

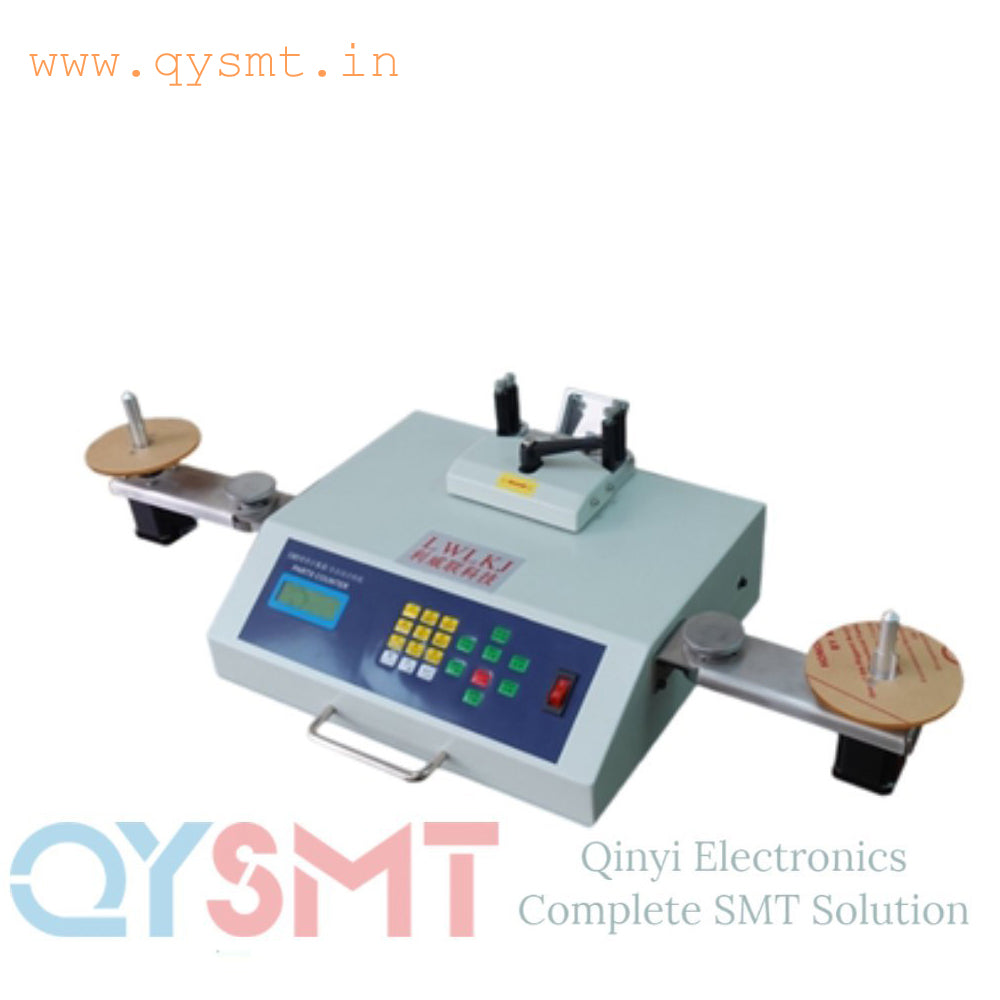

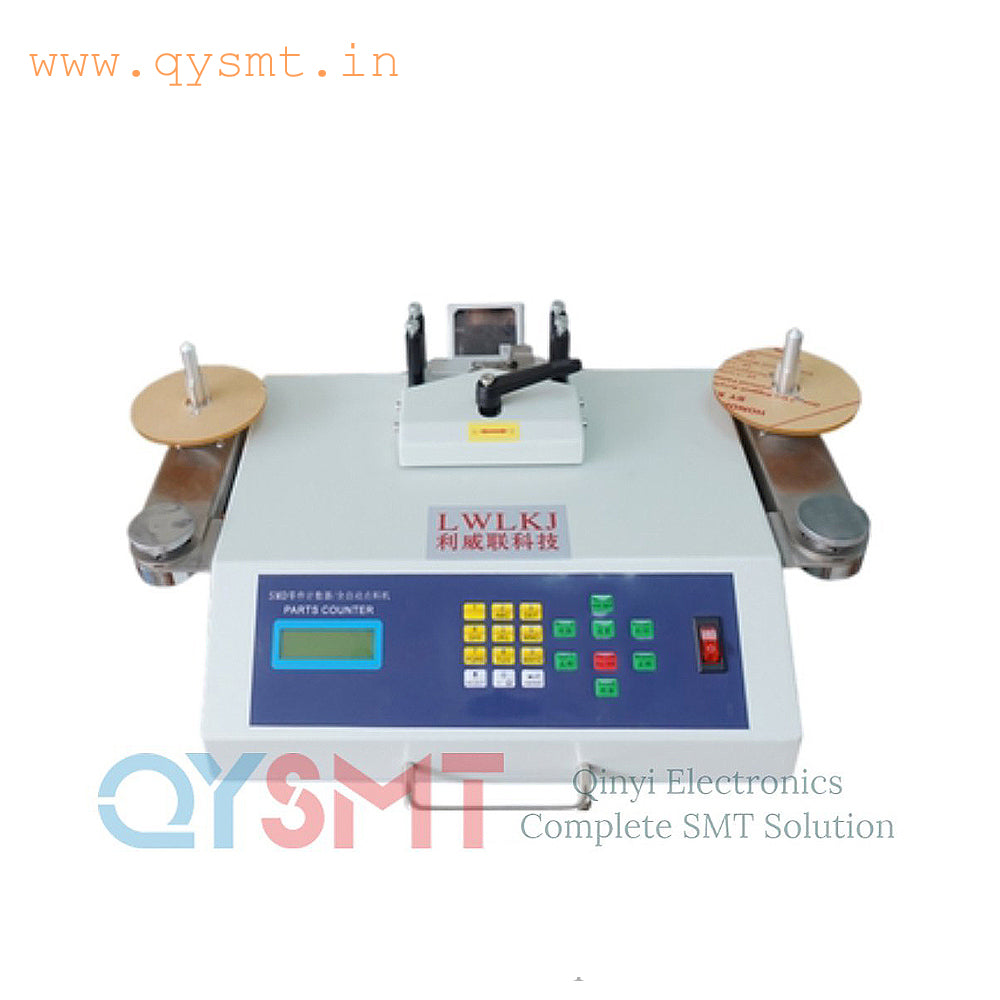

Display: 4 digits 13mm heightMotorized counter for taped SMD component counting. This machine works in a simple way by counting the holes on the tape.

It can operate in two different ways:
Totalizer: components are counted from a zero reference, tape feed is motorized and the counter automatically stops at the tape end, to prevent loss of the total.

Preset mode: the desired component number is keyed on the keyboard and the counter automatically stops when it reaches the corresponding component.

All functions are easy to operate by the help of interactive messages on the graphic display.
In the count screen are always visible:
- Counting direction
- Pitch number (holes per component)
- Working mode (Totalizer, Preset or Rewind)
- Name of the operator
- Components counted
- Date & Time or the last barcode reading.

Technical features
Display: 6 digits high efficiency leds
Maximum counting speed: 220 pc/sec (1 piece per hole)
Accuracy: +/-1 piece
Holes per component: divider from 1 to 99 (and multiplier 2,3,4 for 0402, 0201 and 01005 components)
Maximum tape height: 56mm
Maximum reel diameter: 400mm (standard configuration), 650mm (with 8301.150 support)
Display: blue LCD with led backlight 160x104 pixel, visible area 74x46mm
Adjustable speed control
Step by step mode (1 component at a time)
Empty pocket check (optional)
Barcode reader input
Serial connection for label printer or PC
Selection of the operator (10 operators can be memorized with 8 alphanumerical chars everyone)
Internal clock (1 week backup)
Datalogger that stores the last 500 counting data
Memory storage for subtotals
2 side handles for easy transport.
Parameters:
Operating voltage:220V or 110V (optional, by default, we will ship according to the voltage of your Country)
Counting range: 99999-99999
Weight: 10kg
Machine specifications; 47cm* 30cm* 18cm

Application:
1.SMD And IC Tape and Reel packaging parts and can be applicable
2.Feed pulley(REEL)Diameter: Any size all suitable
3.Material width(WIDTH): 8,12,16,Twenty four,32,44,56 (mm)
4.Strip interval(PITCH): 2,4,8,12,16,........... 48,52,56 (mm)
5.Adjustable arms, the speed multi-adjustable, size material can be applied

• Easy to operate with access to an LCD draft counter and a full functioning control panel in English.
• The machine is fully automatic, which helps in ensuring that the tapes are safe and undamaged.
• Functions are easy to set and included in the manual to ensure accuracy.
• Fast and accurate counting machine for up to 5000 pieces in 30 seconds.
• Tapes are fully motorized, and the counter automatically stops once it reaches the end of the tape.
