PCB Router Drill Bit for Robotic PCB routing machine

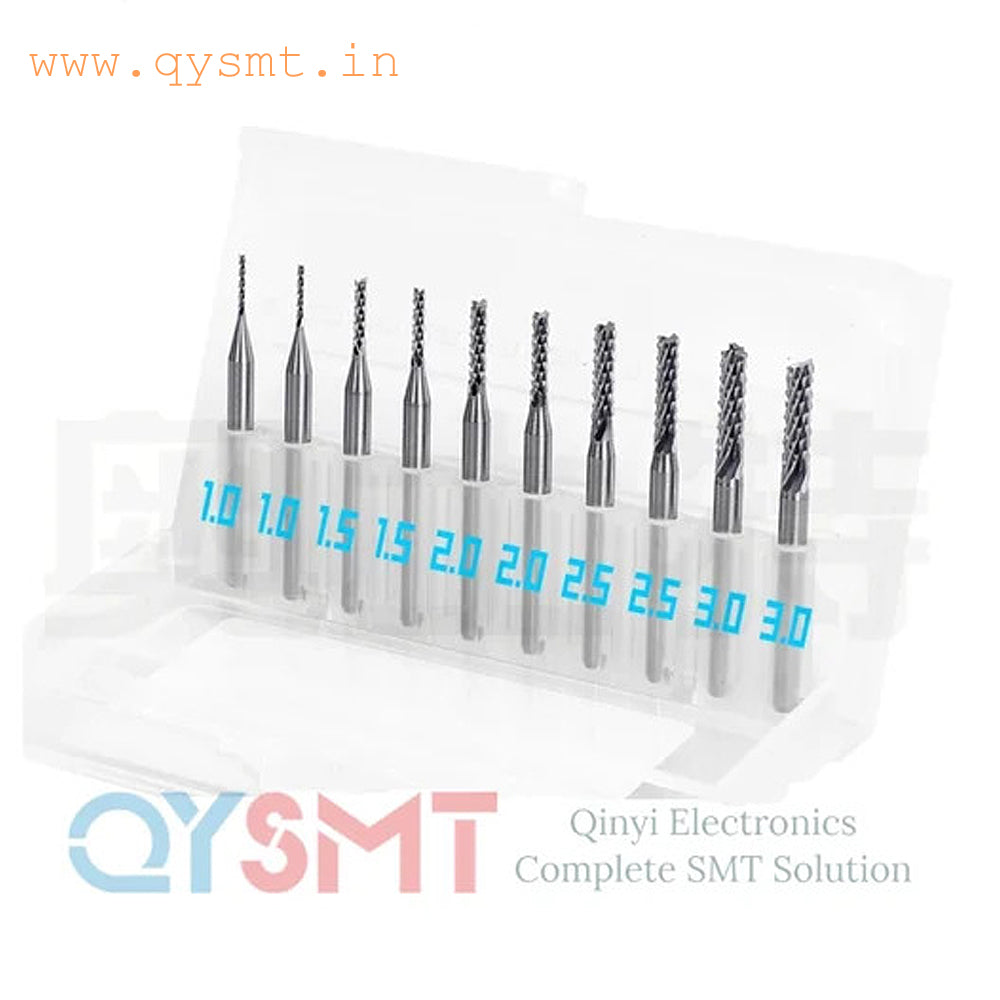

PCB Router Drill Bit for Robotic PCB routing machine 0.8MM, 1MM, 1.3MM, 1.5MM, 2.0MM, 2.5MM

Pcb Router Drill Bits
Soldering Bits
screwing bits
HIOS screwing Bits
robotic screwing machine Bits

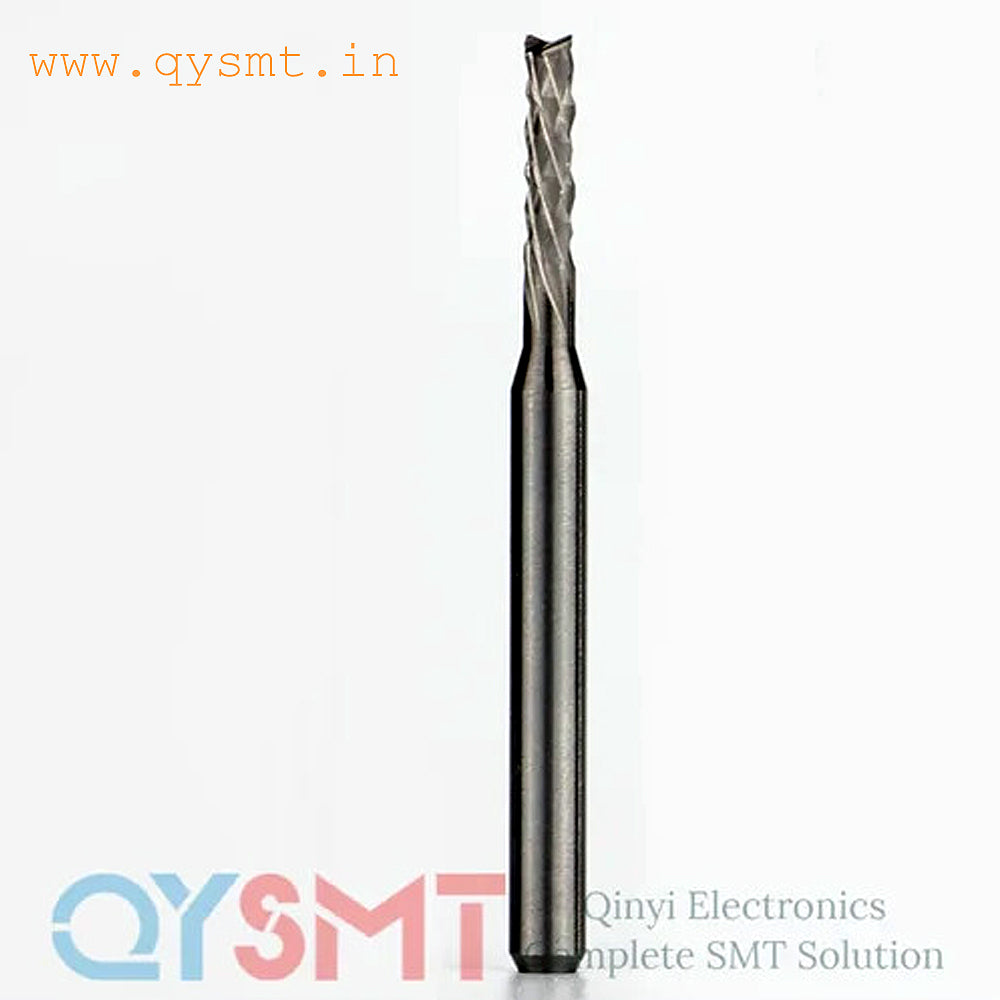

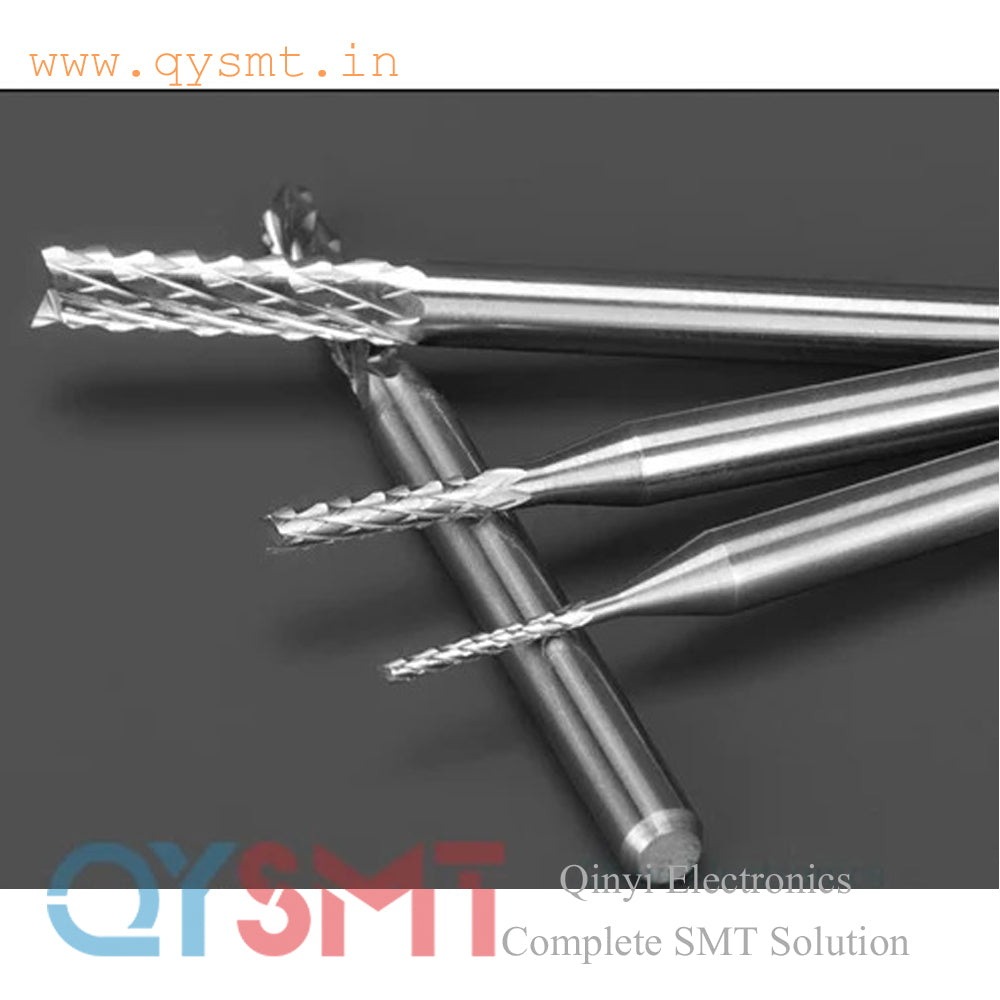

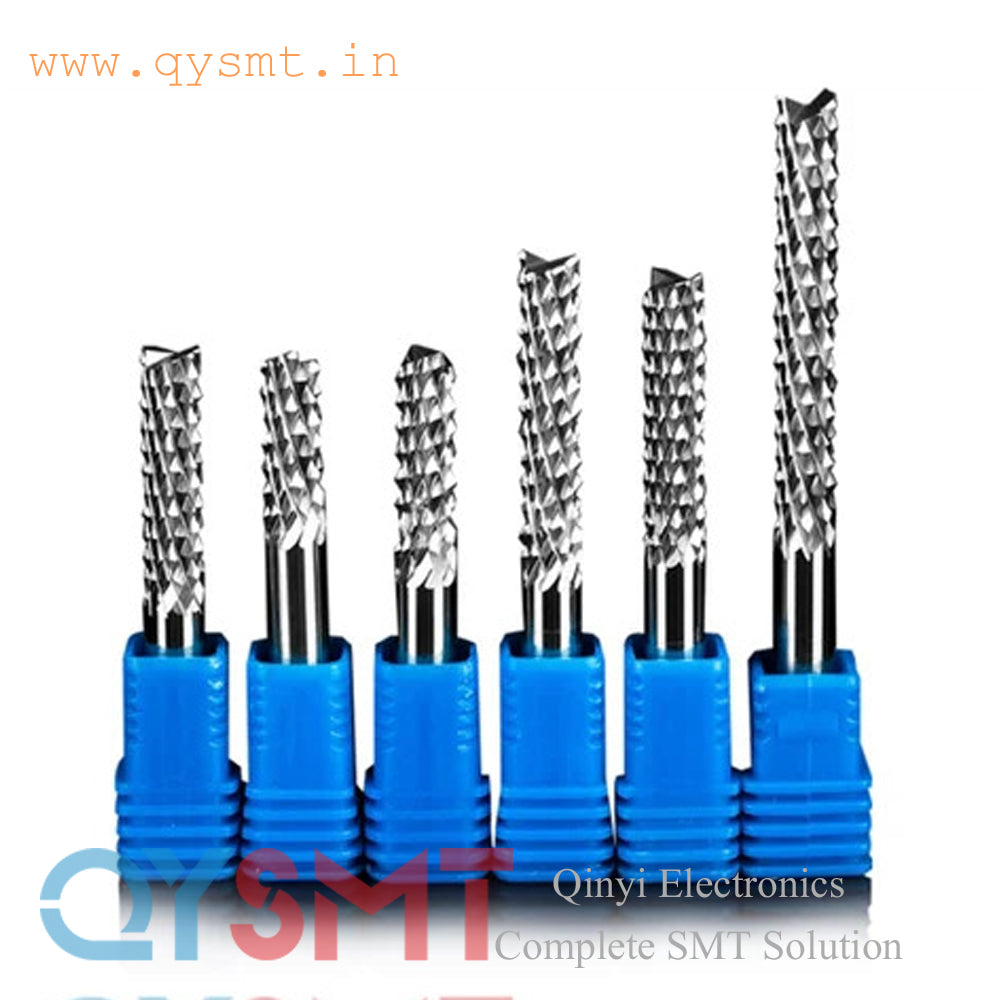

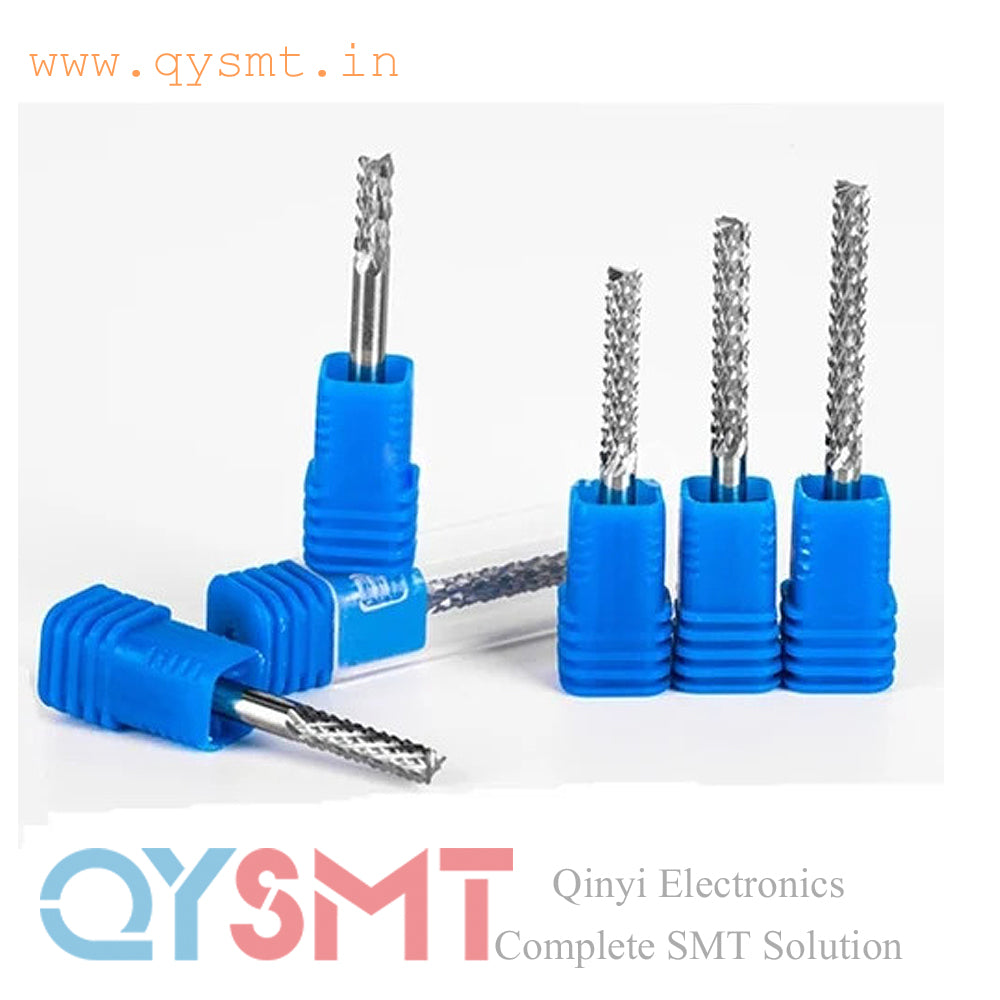

PCB Router bit 2mmPCB router bit 1.3mm PCB router bit 1.5mm Pcb router bit 1mm

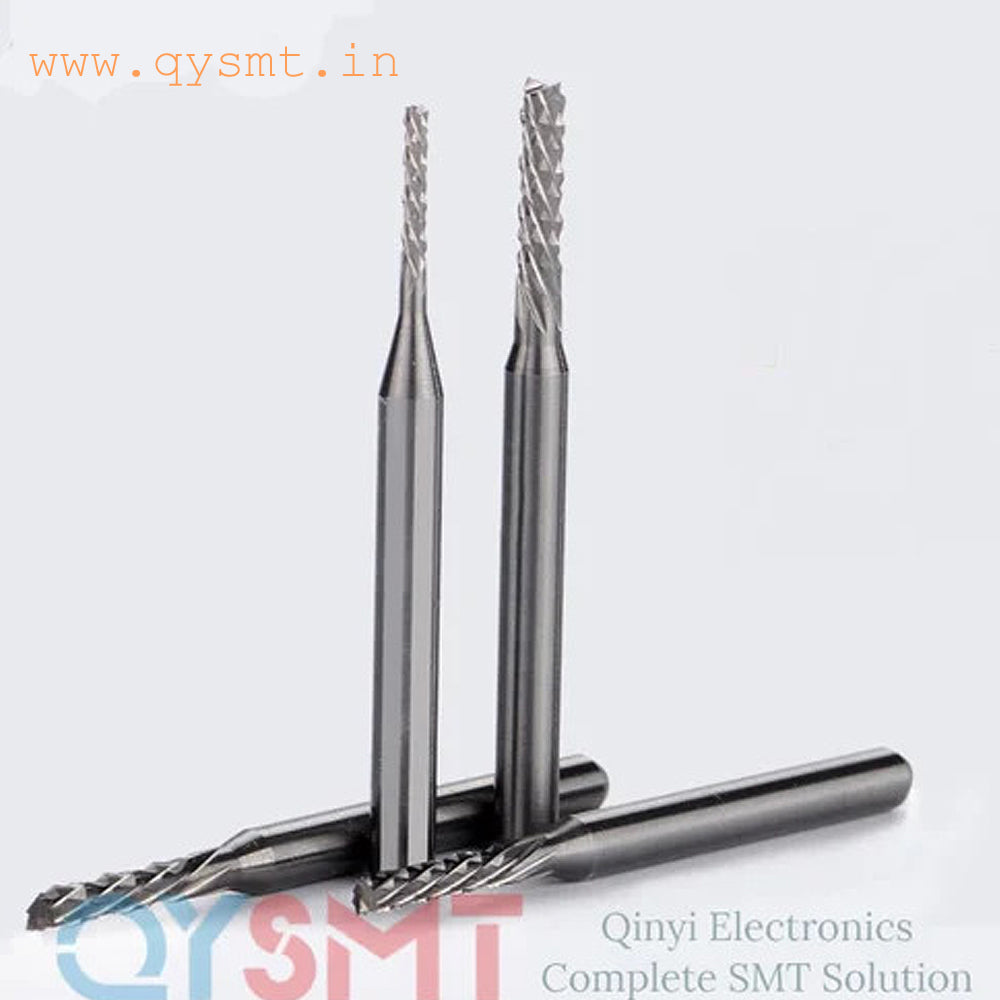

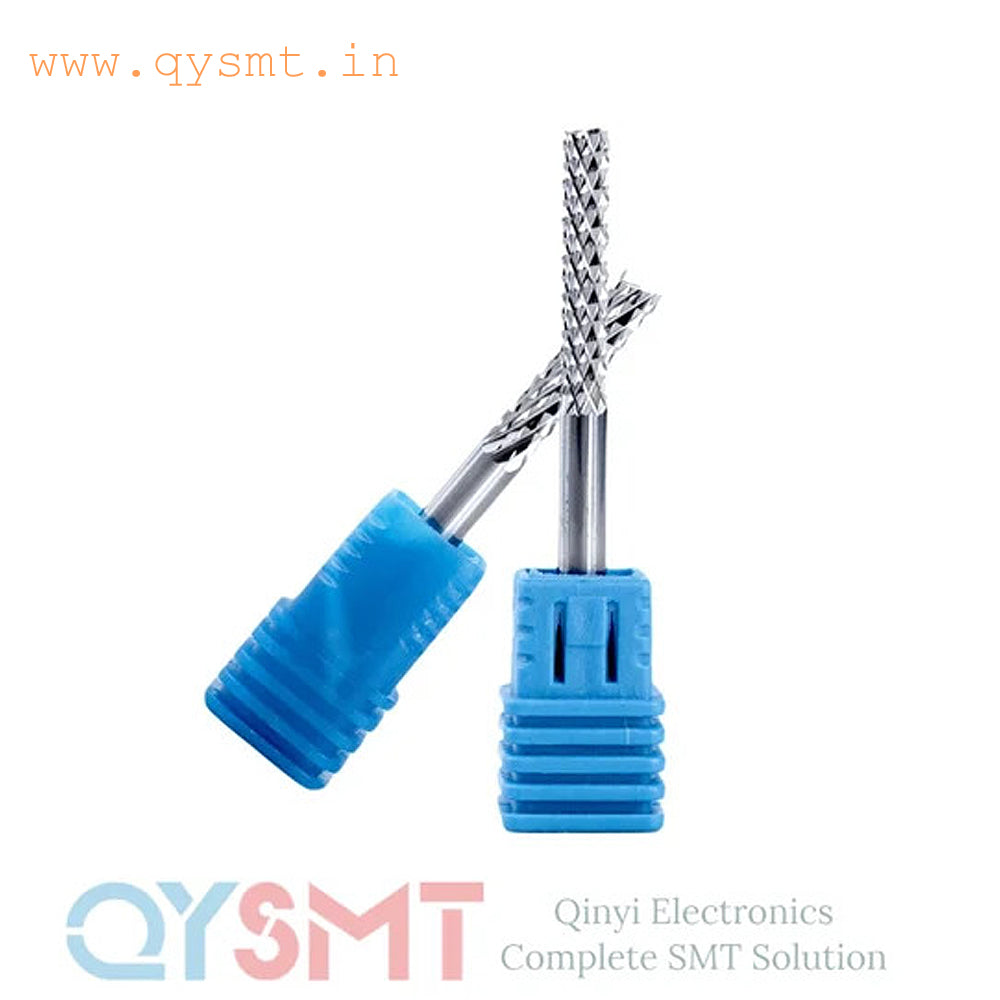

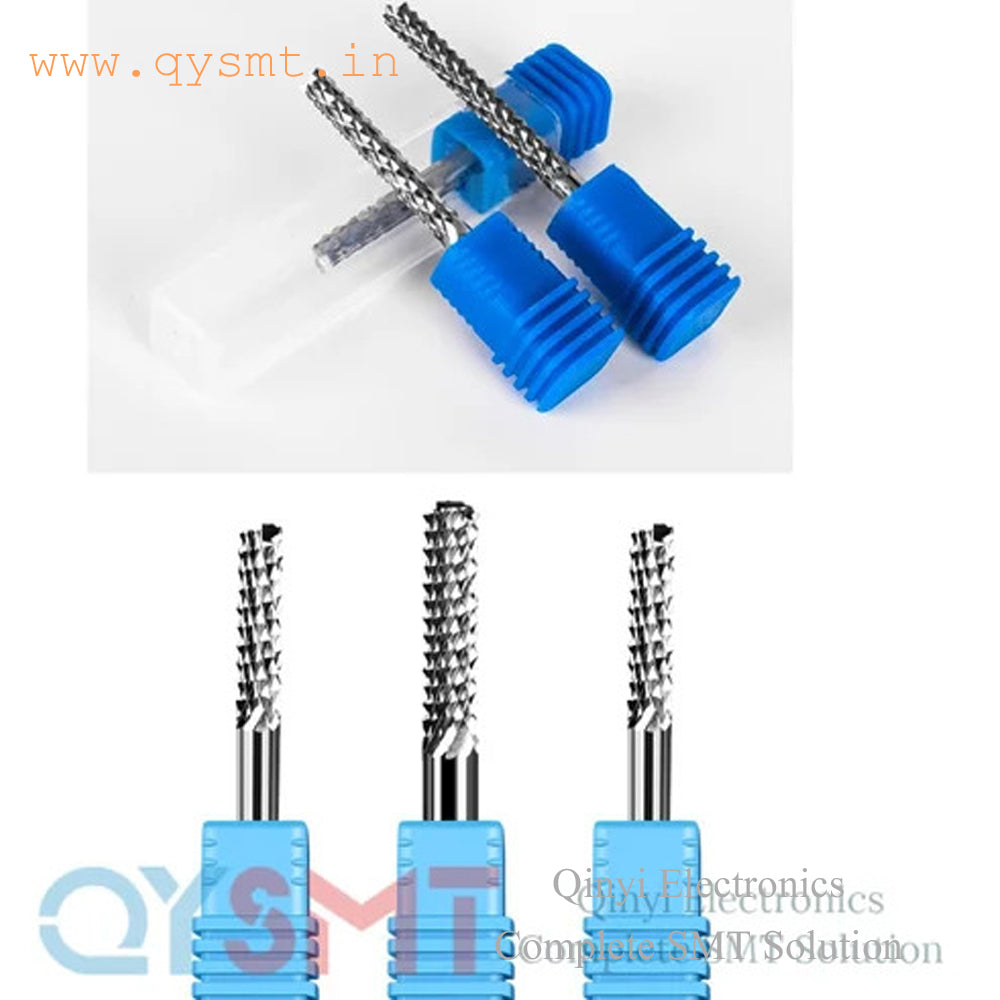

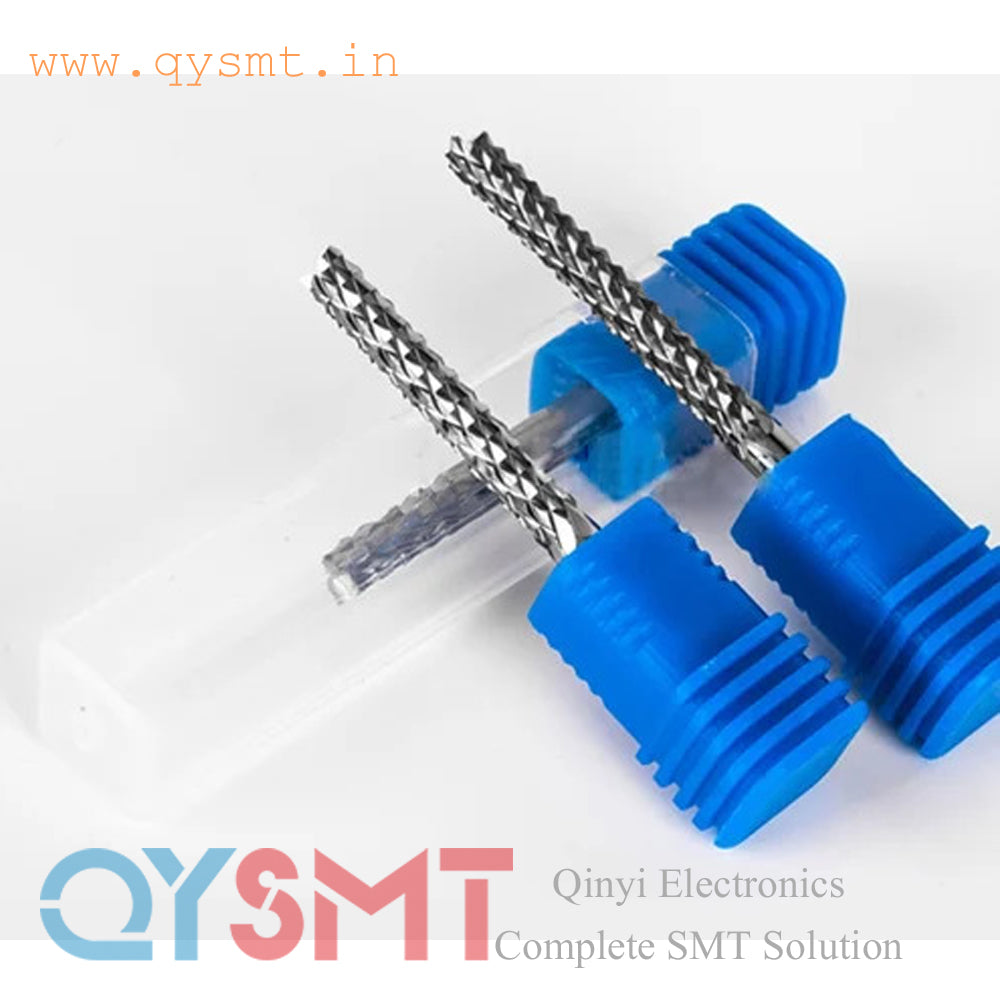

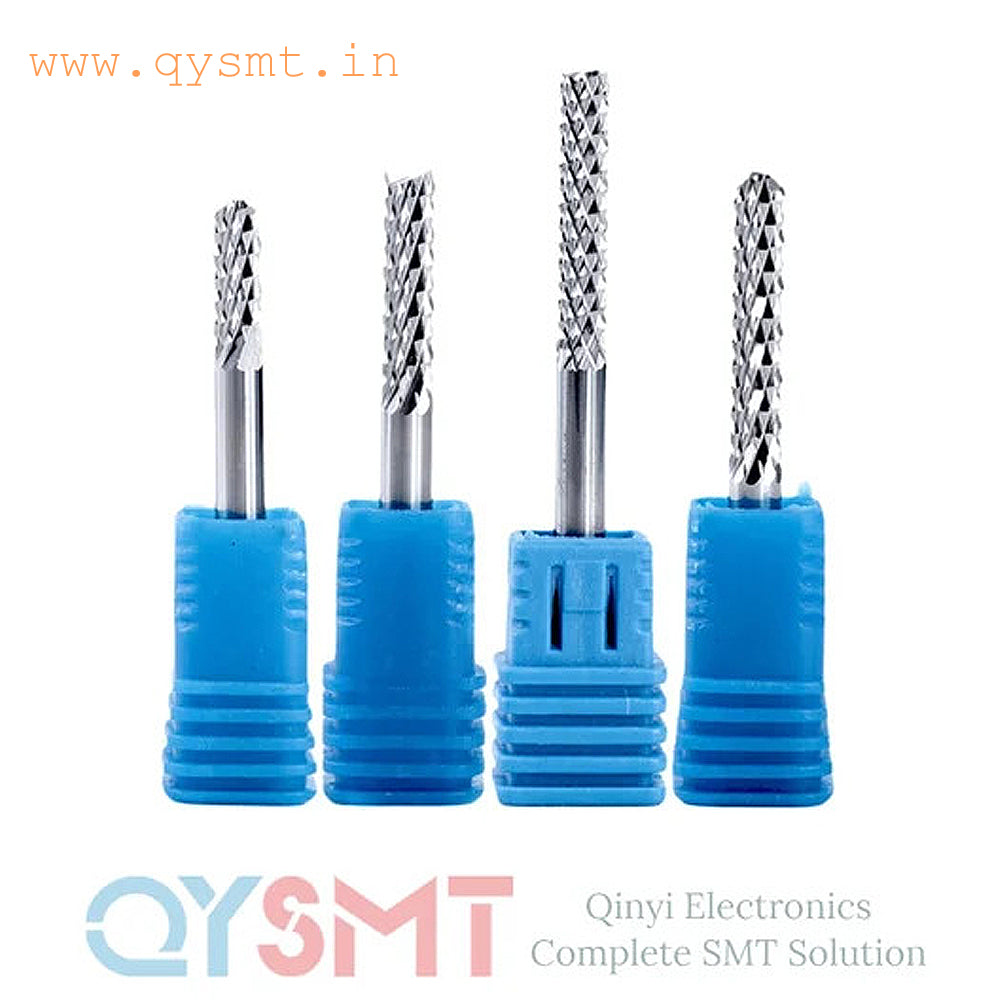

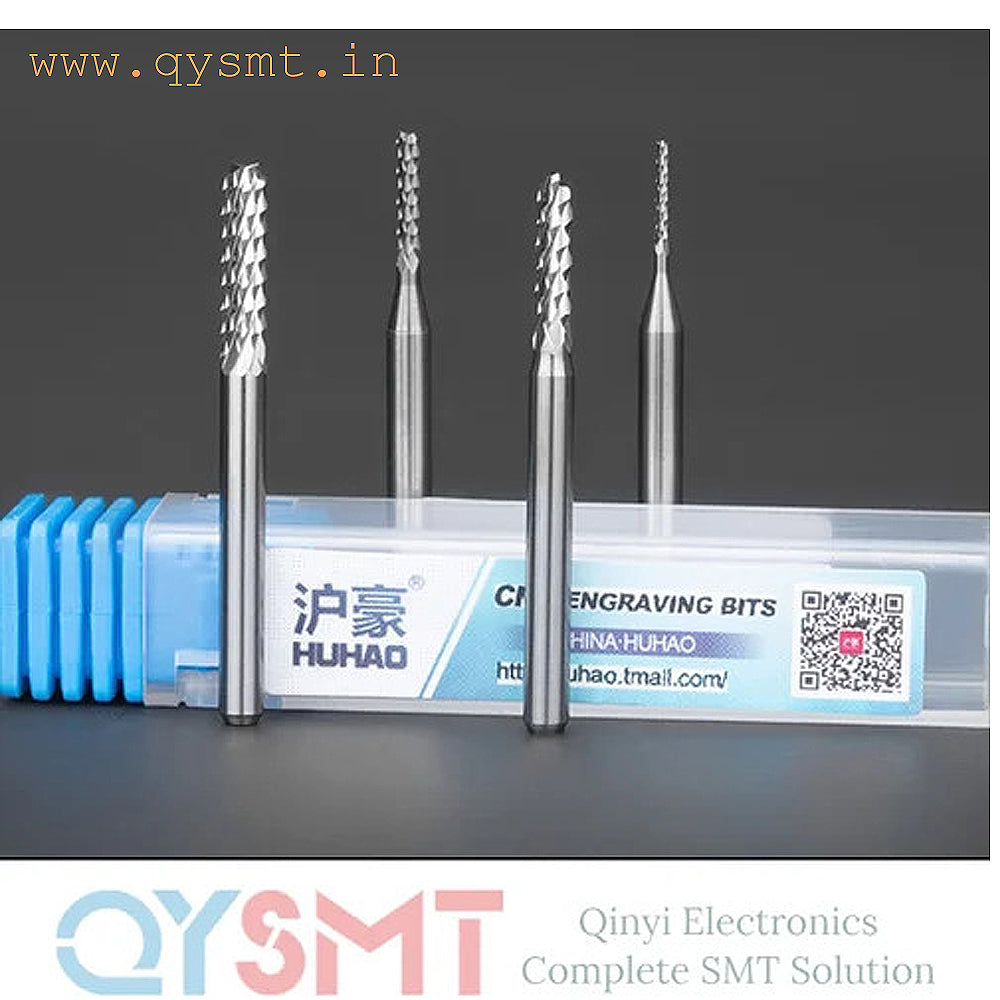

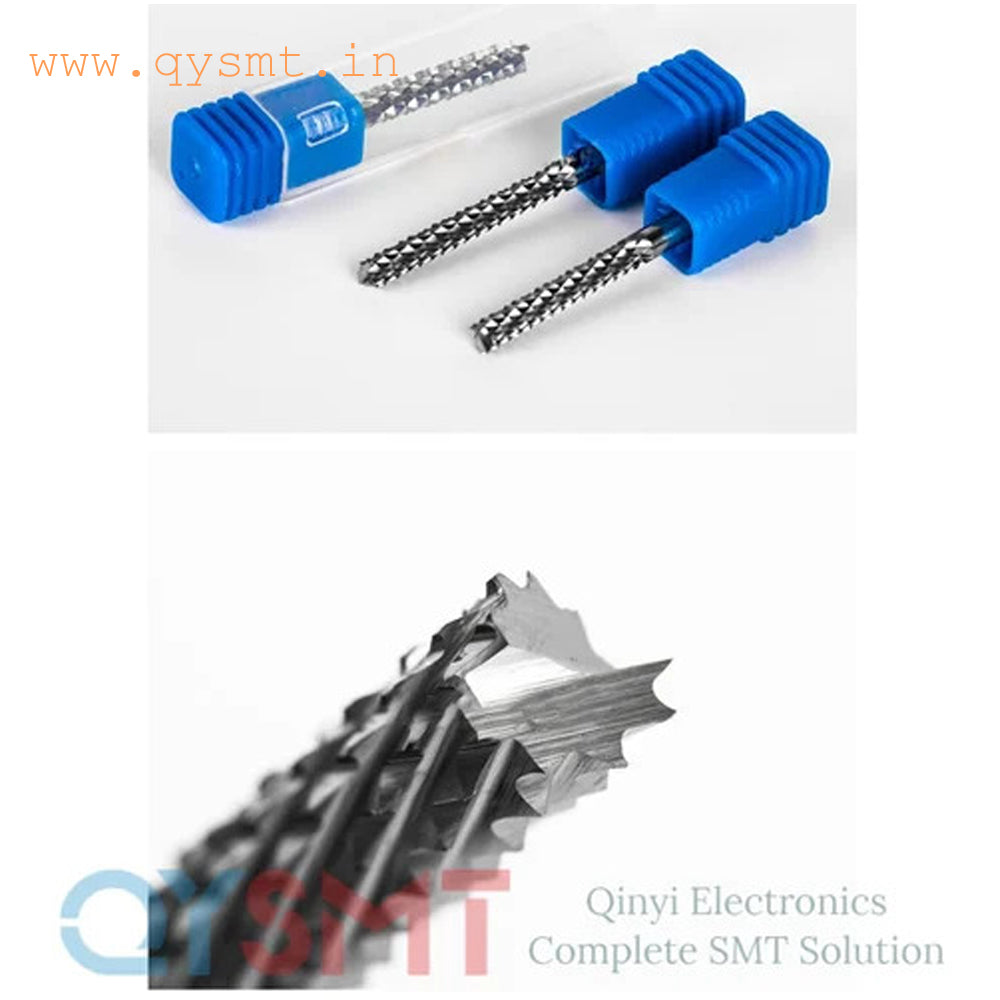

diamond-cut routers have been optimized for machining copperclad substrates where top edge fidelity and smoothness are absolutely required. The cross-cut diamond flute pattern makes these bits suitable for grinding partially fired bisque and alumina ceramics. complete range of solid carbide router bits or PCB routers as they are more commonly known. PCB router bits are used for machining high tech composite materials. Whether you are routing printed circuit boards, insulating parts, de-panelizing PCB’s, trimming carbon fiber helmets or aircraft parts Midwest Circuit Technology has the right style and diameters to help you get the job done.

Some of the materials these PCB router bits machine are: G10 epoxy fiberglass, “Garolite”, FR4, Phenolic, Polyamide, G11, Carbon Fiber laminates, paper or glass cloth-based composites, ceramics and more, either with or without copper cladding. Typically they are used in CNC equipment with high speed spindles. Many of these tools are used on equipment made by Excellon, Cencorp, ASYS, IPTE, Precision PCB, Kenard, Paul Dozier, Sayaka, JOT, LPKF, OZO, Autolink, Seika Machinery, Techno, Elite Automatic and ATI Depaneling Routers. Alternatively they are used in manual mills and in hand-held spindles such as Dremel’s trimmers.

Diamond cut router bits are the traditional style for routing PCB’s and epoxy glass laminates. They offer long life excellent finish and good productivity. Chipbreaker style are used when higher federates are called for and for certain “softer” materials that benefit from the multi-fluted design. But as a rule the diamond cut routers are the choice used by our customers for composite laminate materials.PCB Cutting Machine Description:

- Provide auto tool-change mechanism. Efficiency of operation is promoted significantly.

- Equipped with high-speed CCD vision alignment system in all series of products to

enhance the precision in cutting and efficiency in operation.

- Use high-speed spindle with small cutting stress to precisely cut PCB of any shape.

- Provide dual worktables for placing and cutting PCB in parallel to enhance the efficiency of operation.

- Patented dust collector with low noise and high efficiency. Easy to clean and maintain.

- Windows OS and window-based interface panel. Safe, stable, easy to learn and operate.

PCB Cutting Machine APPLICATION

- Equipped with high efficient vision-aided position alignment system with high-speed

CCD camera in all product series. Especially designed for high-precision and high-prodution

PCB cutting process.

- Suitable for de-paneling small-sized PCBs for cell phone, car electronics, GPS device,

PDA, and board card, etc.

- Can choose either standard fixture or customized fixture for PCB cutting to help

increasing the production volume.

- Provide dual worktables so that placing and cutting PCB can be performed in parallel

to minimize the waiting time. Product

P626 / P627

Diamond Cut Router

0.70 – 3.175 mm

P660 / P661

 Diamond Cut Router

0.50 – 2.50 mm

P726 / P727 / P724 / P729

Chip Breaker Router

0.40 – 3.175 mm
