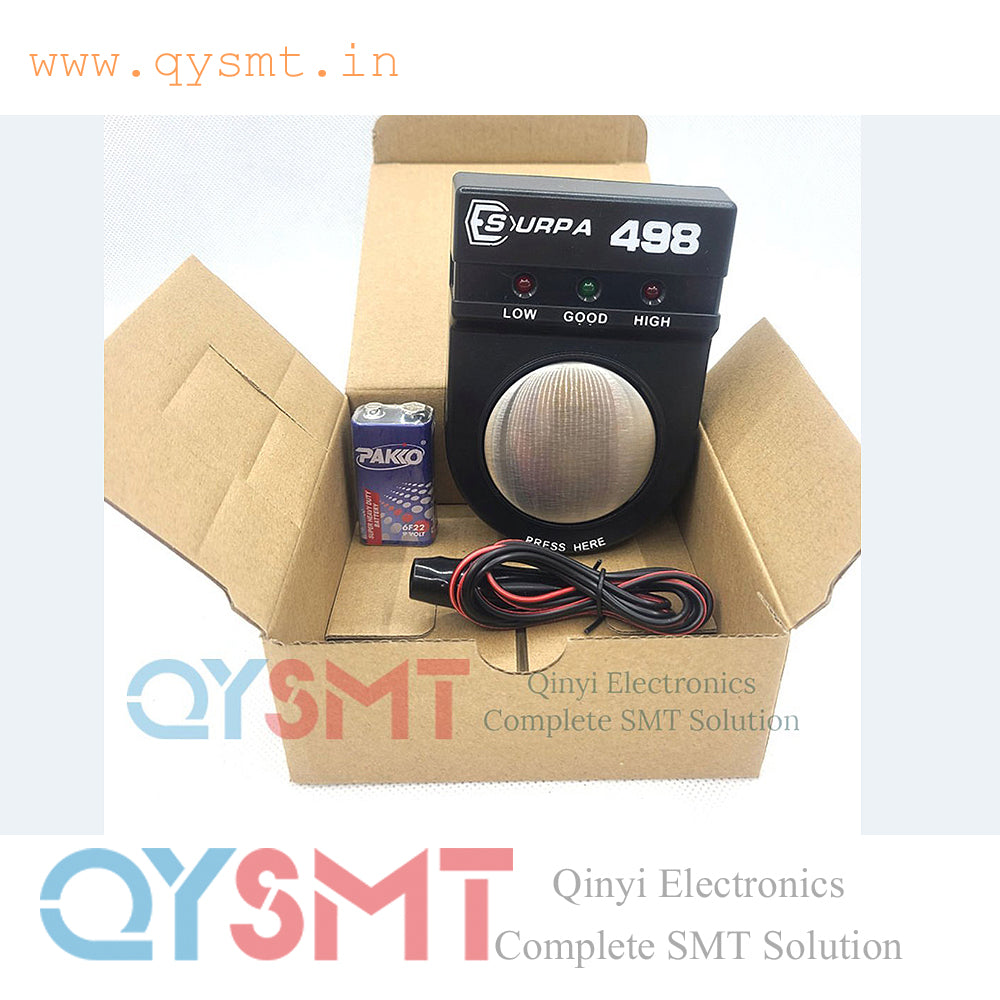

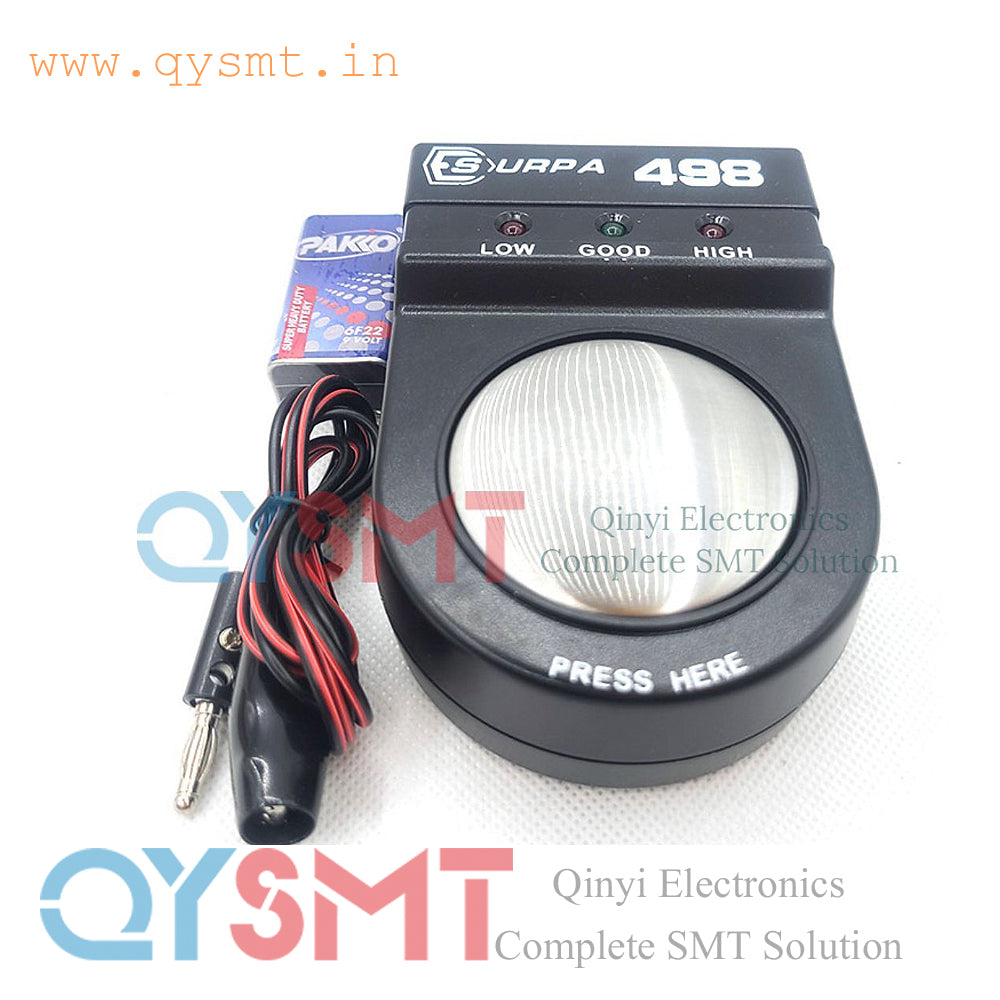

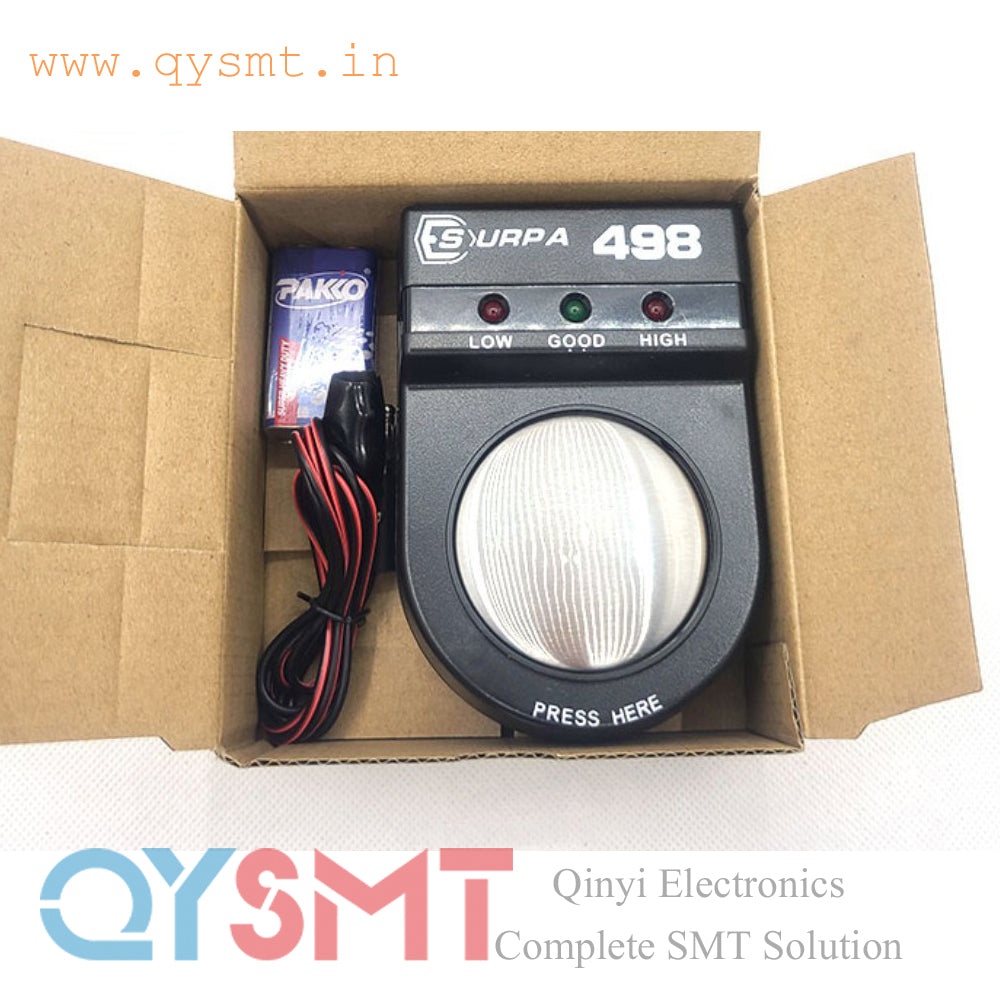

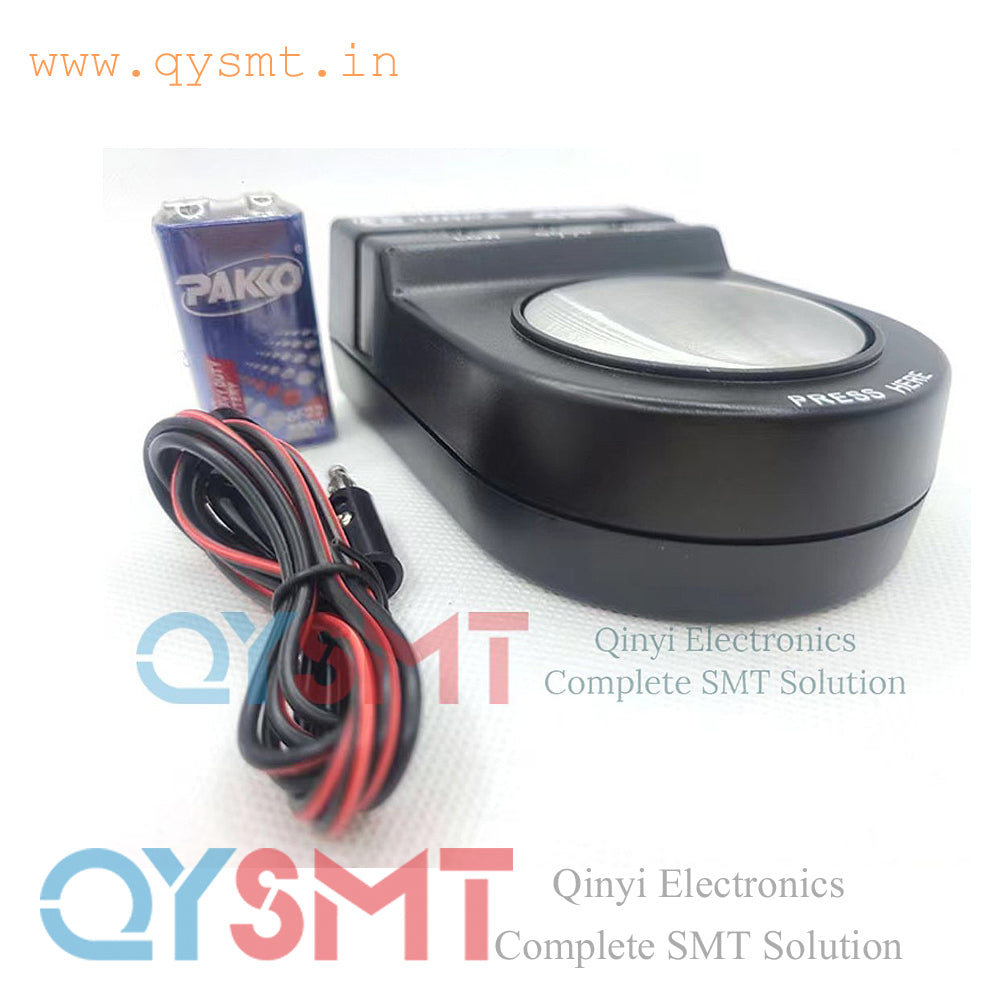

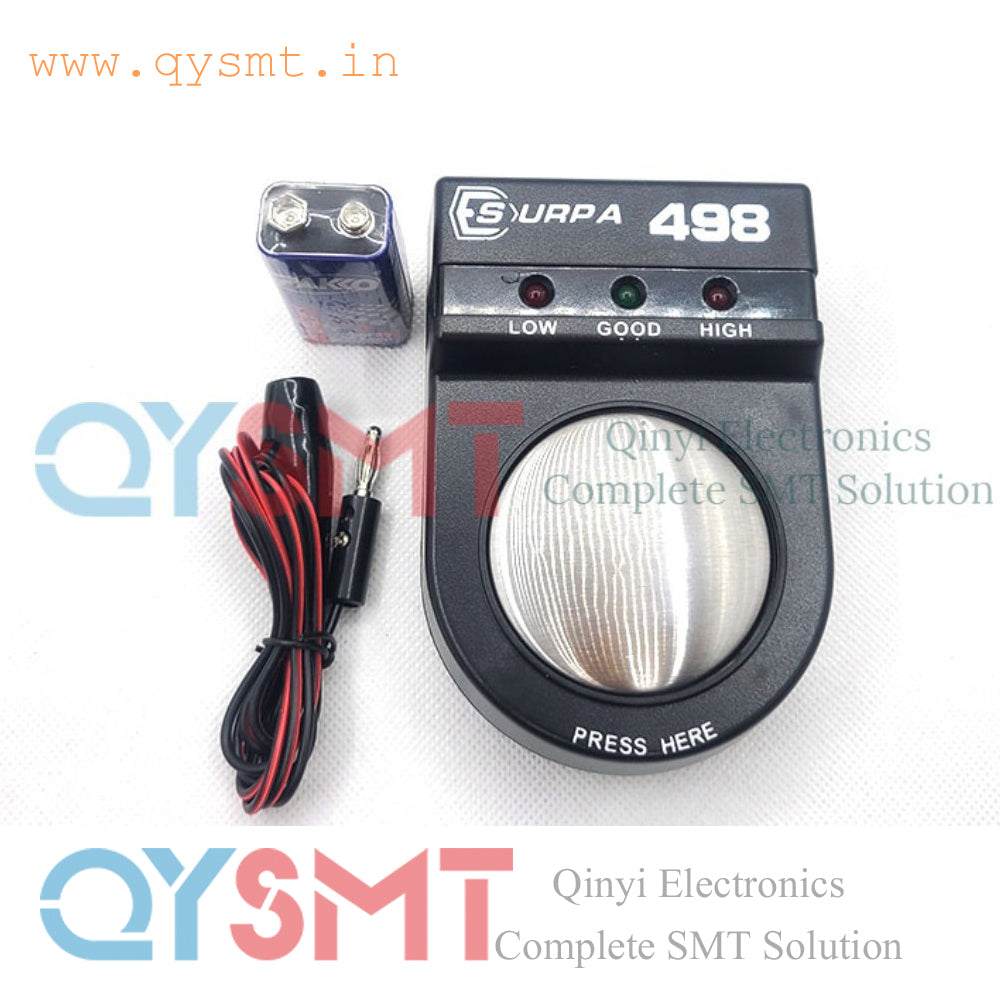

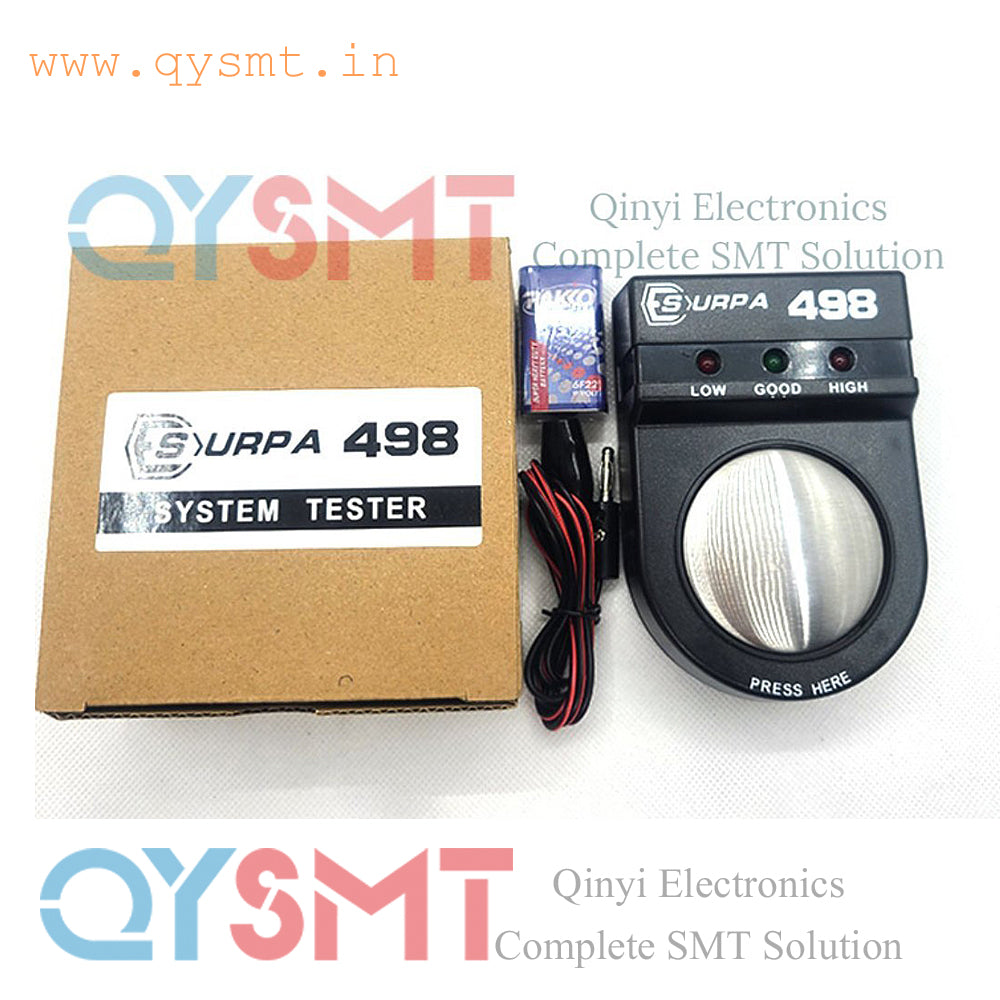

ESD wrist strap tester SURPA-498

ESD wrist strap tester SURPA-498

Call or Whatsapp +91 9667067377

Email: shivani@qysmt.in

ESD wrist strap tester SURPA-498

ESD wrist strap tester SURPA-498
 ESD wrist band tester 498 model
we provide complete solution for SMT line machines and there spare parts.

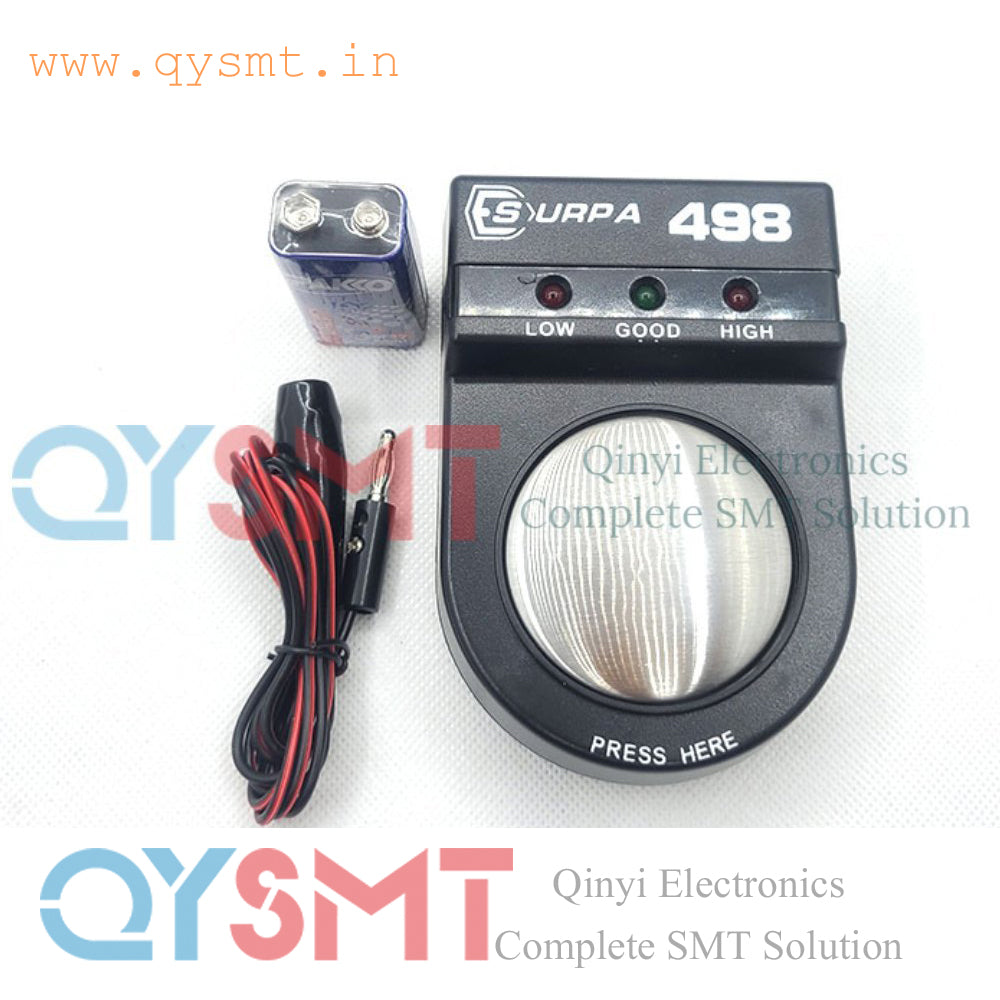

    • Product Name:  498 Portable Wrist Strap Tester

    • Product Model:  SURPA 498

    • Product Size:  115x77x40

  • Using voltage:  9V

Item Name: Anti-static Wrist Strap Tester


  • Insert a 9V battery into the battery compartment at the back of the unit.
  • Insert the plug of the grounding wire into the grounding wire jack which is at the top of the unit.

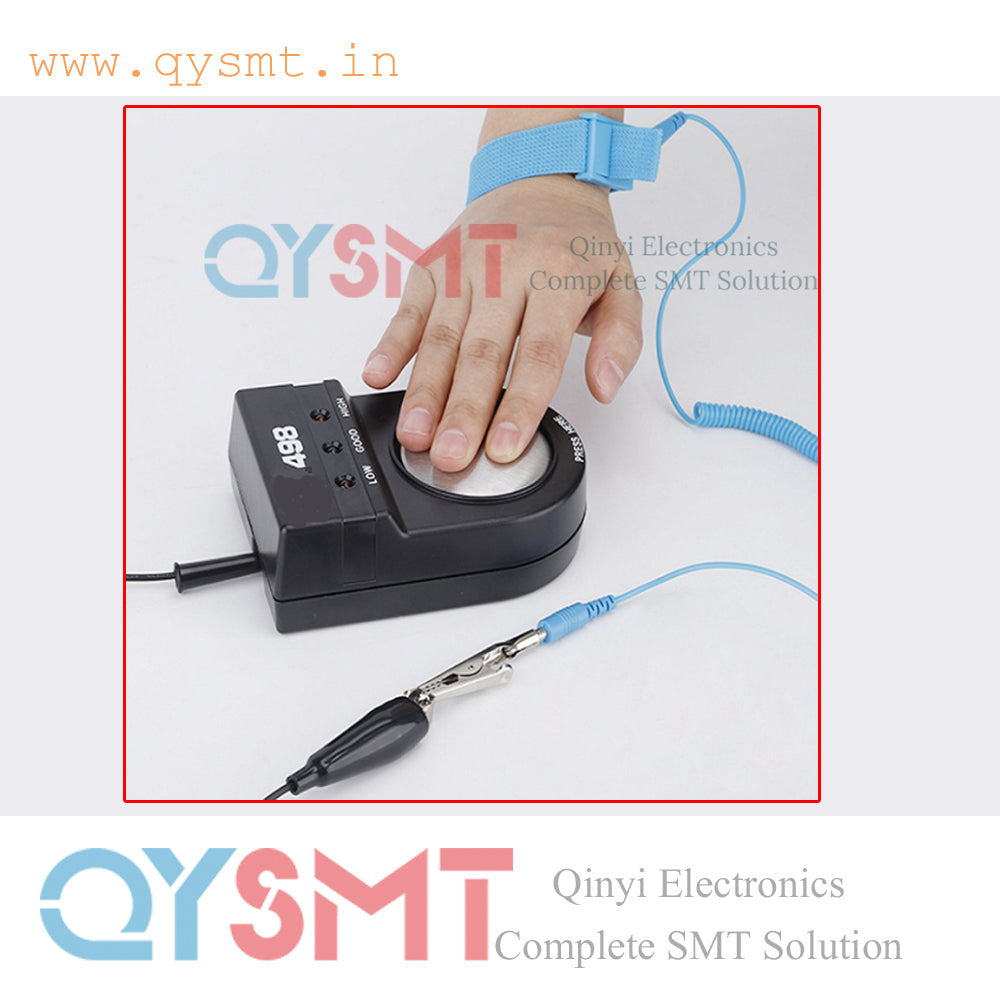

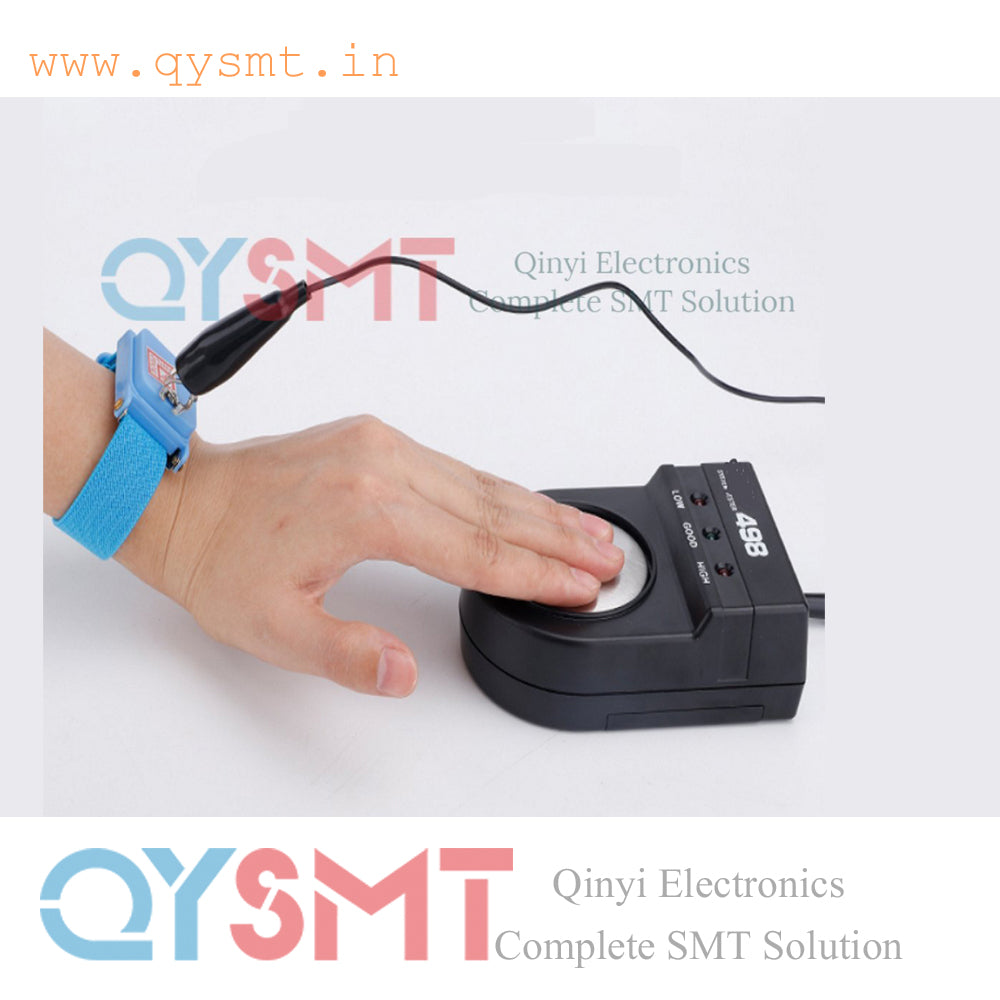

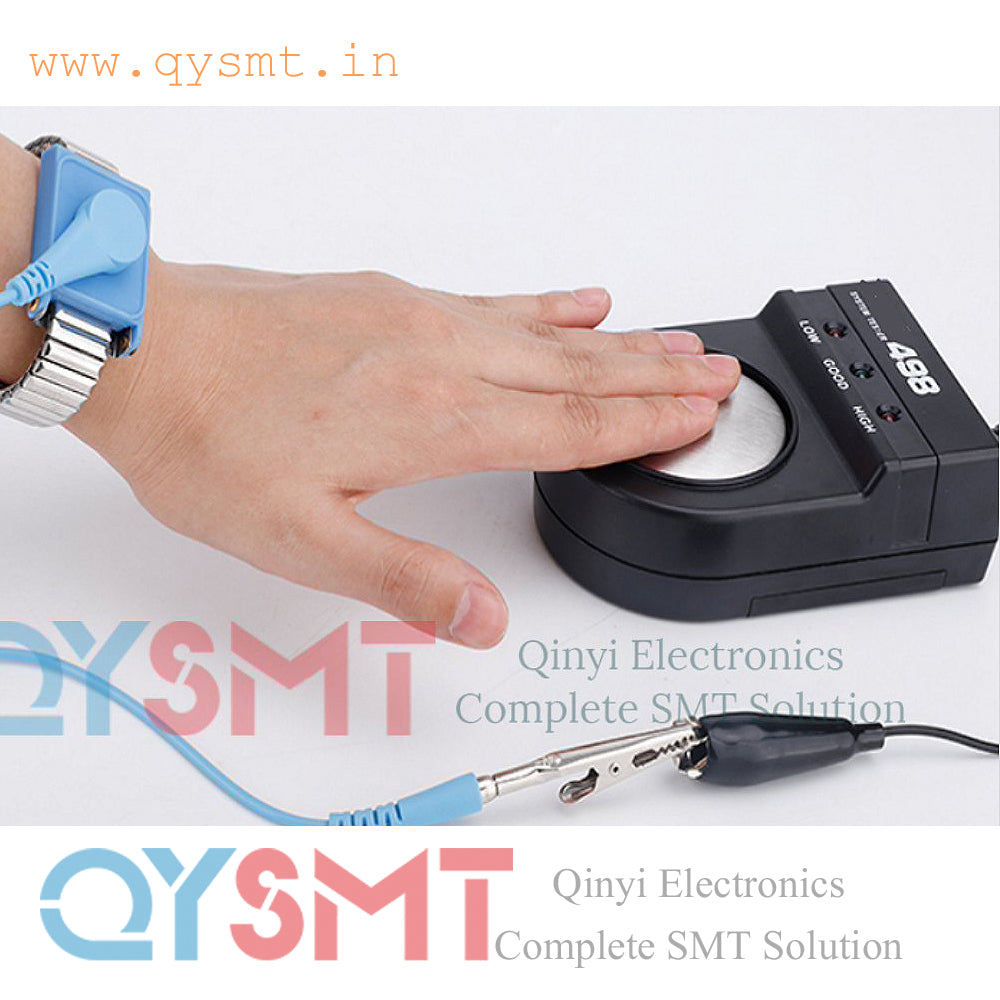

  • Attach wrist strap to your wrist firmly.
  • Connect grounding wire to wrist strap.

Press the test pad of the unit.At this moment,there are three situations:

  • If the green"GOOD"lam lights up and an audible signal can be heard,it shows that grounding system is safe and wrist strap is in normal condition.
  • If the red"LOW"lamp lights up,you must check the resistance of wrist strap grounding wire.If it is lower than 800KΩ,on special situation,it may have an influence on human body.
  • If the red"HIGH"lamp lights up,first,check wrist strap to make sure it contacts wrist firmly.Then,check the resistance of wrist strap grounding wire.If the resistance is higher than 9MΩ,the anti-static effect will turn feeble and even lose it anti-static ability.

Function introduction:
In the industrial environment where artificial intelligence is widely popularized, although a large amount of work has been completed by automated equipment, there are still many links that must be manually operated in the production process, and the static electricity carried by the human body will cause damage to the product, and at the same time Good grounding is also a necessary means to ensure the safety of workers. SURPA 498 portable wrist strap tester is a researched and improved product of Tongge Company. It is used to quickly check whether the grounding system and wrist strap are worn well and working normally, avoiding static electricity damage to products and reducing Defective rate, while ensuring worker safety
