DC Load tester
DC Load tester JT6310A JT6311A JT6312A JT6313A JT6314A JT6315A
Mobile charger testing Machine
DC adaptor testing machine
JT631xA Series Programmable Electronic Load testing machine

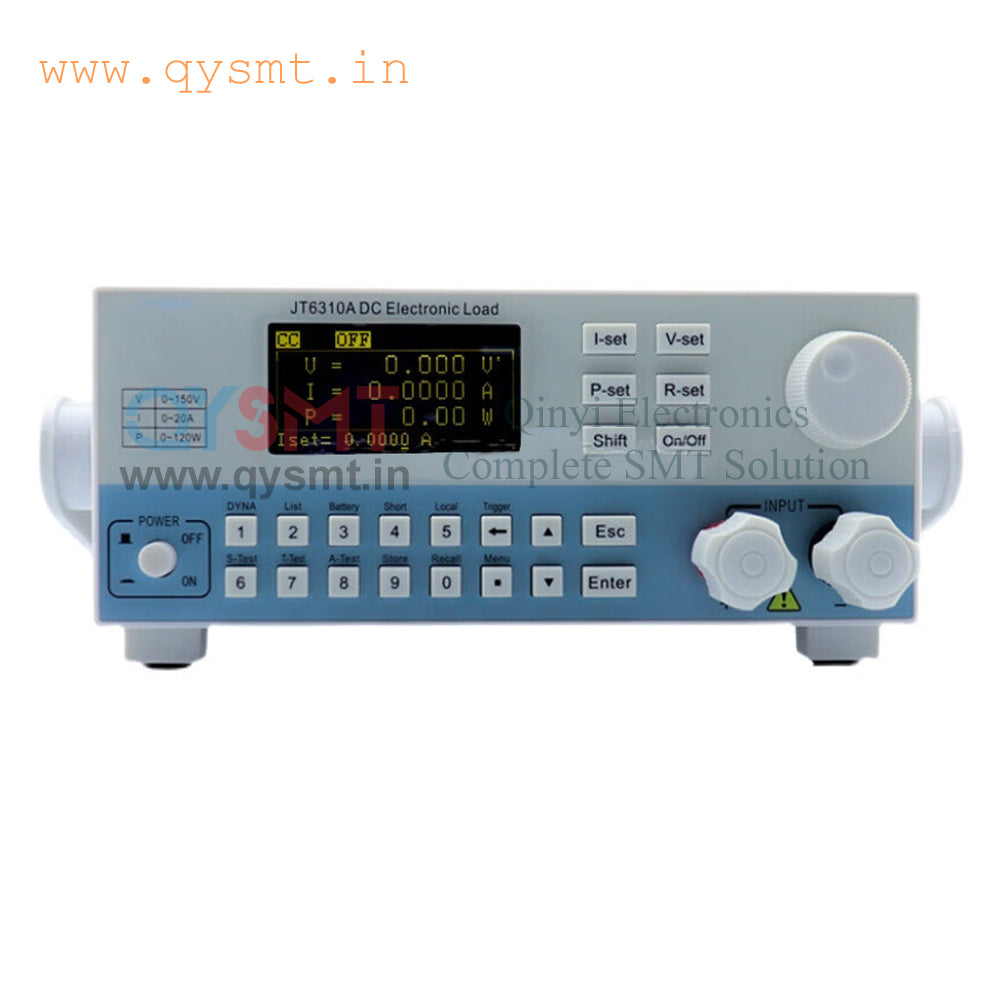

Model: JT6310
____________________________________________________________________
|
Input Rating |
Power |
120W |
||
|
Voltage |
0~15V |
0~150V |
||
|
Current |
0~3A |
0~20A |
||
|
Min. operating voltage |
1V@20A |
|||
|
Full range current rising time |
10uS |
|||
|
CC Mode |
Range |
0~3A |
0~20A |
|
|
Resolution |
0.05mA |
0.5mA |
||
|
Accuracy |
0.03%+0.08%FS |
|||
|
CV Mode |
Range |
0~15V |
0~150V |
|
|
Resolution |
0.2mV |
2mV |
||
|
Accuracy |
0.03%+0.02%FS |
|||
|
CP Mode |
Range |
120W |
||
|
Resolution |
16Bits |
|||
|
Accuracy |
0.1%+0.1%FS |
|||
|
CR Mode |
Range |
0.05Ω~50KΩ |
||
|
Resolution |
16Bits |
|||
|
Accuracy |
0.1%+0.0001R |
|||
|
Dynamic Operation Mode |
Range |
10uS~50S |
||
|
Resolution |
2uS |
|||
|
Accuracy |
1uS+20PPM |
|||
|
Slew rate |
0.6A/mS~3A/uS |
|||
|
Voltage Meas. |
Range |
0~15V |
0~150V |
|
|
Resolution |
0.1mV |
1mV |
||
|
Accuracy |
0.015%+0.03%FS |
|||
|
Current Meas. |
Range |
0~3A |
0~20A |
|
|
Resolution |
0.01mA |
0.1mA |
||
|
Accuracy |
0.015%+0.08%FS |
|||
|
Ripple Meas. |
Range |
0~15V |
0~150V |
|
|
Bandwidth |
15Hz~250kHz |
|||
|
Accuracy |
0.03%+1mV |
0.03%+10mV |
||
120W/20A/150V; 10uS full range current rising time; 500KHz synchronized sampling;taking great advantage in testing switching power supply, ATE, fuse, etc.
