Bluetooth Device Testing Machine HXG LY668

Bluetooth Device Testing Machine HXG LY668

Bluetooth device tester with shieling Device HXG LY668
For Bluetooth neckband
can check smartwatch
can check TWS
suitable for bluetooth speakers
Bluetooth device tester

we have multiple models of bluetooth device testing machine.
Bluetooth device testing machine for TWS smartwatch , bluetooth speakers , bluetooth specticals and many other devices.

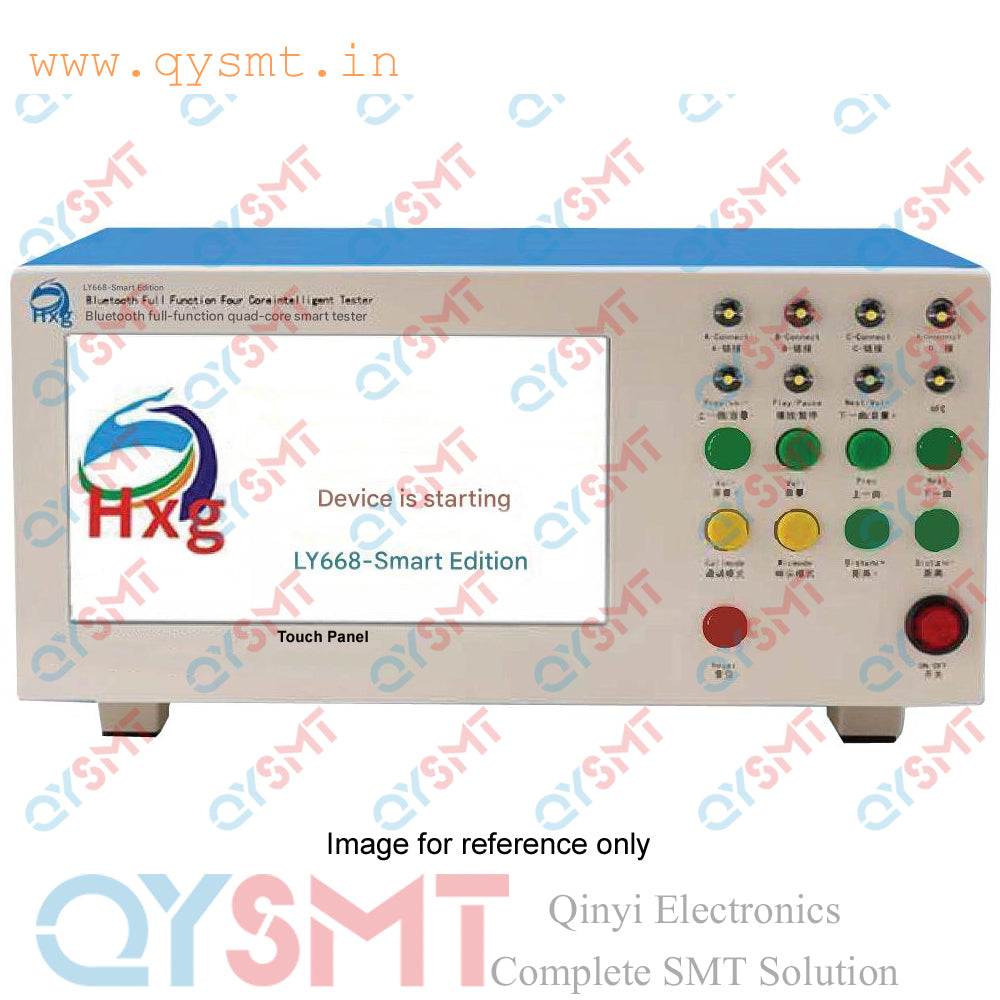

LY668 Smart Edition is a full-function quad-core intelligent tester for Bluetooth products. Fullfunction+(headphone pop-up) all-in-one function test, 7-inch LCD touch screen. Main productmarket: Bluetooth products such as headphones/speakers/cars/smart watches /K-Gebao/selftimer/etc. Test tools for improving production and reducing personnel production based onBluetooth products. Standards A2DP, SBC, APTX, APXLL HFP, AVRCP protocol, can testspeaker /MIC microphone/up and down/volume up and down/play/pause/left and rightchannels/key function/stereo/product power /DB value data/chip name/function operation isconvenient and fast/optional display of test function status can be seen at a glance on the mirror!Compatible with the full range of Bluetooth scheme/fast link speed/self-shielding/control ofdistance to prevent serial adjustability, optional four-channel/single-channel mirror display

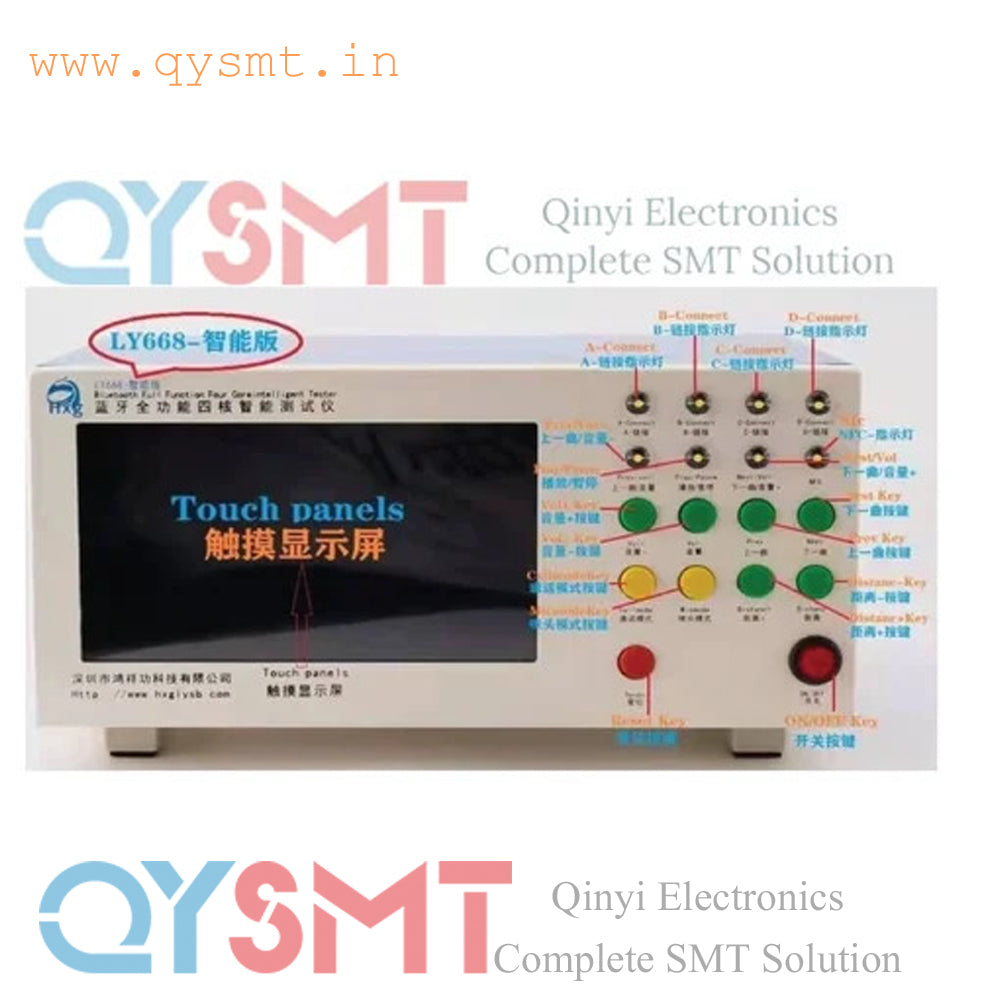

Bluetooth function testIn the same position, one instrument can be operated by multiple functions at thesame time, and the function test of Bluetooth products can be completed! Built-insound source does not need TF card, music can be automatically played when thedevice is successfully linked with the product, and the product emits sound sourceat the same time. At the same time, 4 Bluetooth products can be linked. This deviceis suitable for assembly line and test room work. Its main features are: fastconnection/strong compatibility, simple operation/convenience and high efficiency!You can also manually adjust the distance on the device to control the effect ofinterference shielding function of Bluetooth search link in the far and near range. Ithas the functions of saving test and linking data, and viewing all test result recordson the device. The screen can display Bluetooth address, Bluetooth name, RSSI, functionoperation status, signal strength, pop-up window pattern+left and right earpower, Bluetooth version and chip name, control loop back, address code erroralarm function! Better management of production batches will not lead towrong product names. It is not limited by Bluetooth scheme and can be compatible with all Bluetoothscheme chips in the market. At present, the tested Bluetooth schemes includeCSR, RDA, ISSC, OV, MTK, Qualcomm, Zhongxing Micro, Jianrong, Jieli,An Kai, Momentum, Constant News, BK Shanghai Broadcom, AmericanBroadcom and other Bluetooth schemes in the market. .............
V. Test equipment power supplyUse DC 12V power supply 2A to power the instrument, and press the equipmentswitch to start and operate normally.One. Description of Bluetooth product automatic connection test instrumentWhen multiple Bluetooth products are turned on in the Bluetooth pairing state, theequipment will automatically enter the pairing Bluetooth products, and the testequipment will search for and automatically link four Bluetooth products at the sametime. After successful connection, it will automatically enter the music playing state,and the operator can pick up the products with music at will for operation function.(Operate according to the functional requirements of his own products) After theBluetooth function is finished, the equipment will automatically find the next productpairing link. This equipment has four independent channels and can be operated bymultiple people at the same time.Two: Function Test Up and Down, Pause/Play button function testinstructions
