Bakon BK373 Automatic Solder Wire Feeder Machine

Bakon BK373 Automatic Solder Wire Feeder Machine

Automatic solder wire feeder machine Bakon BK373
All spare parts and complete set of BAKON BK373  is available with us.
Bakon BK373 Automatic Solder feeding system

Bakon 373 Automatic tin-out matching system, suitable for a variety of soldering irons and soldering stations, to achieve one-hand operation;

Automatic tin-out function, pull-code switch design, tin-out speed, tin output, tin-out interval are adjustable, and Adjust the tin back function to reduce welding waste. There are two kinds of automatic and manual tinning methods, which can be equipped with a foot tin switch and a manual tin switch.

Model No. BK373

Voltage 220VAC,50Hz

Feeder speed 14-35mm/s

Motor power DC24V 3.2W

Sending amount of tin: 0-120mm

Return amount of tin adjustable

Tin wire diameter: 0.6    0.65    0.8     1.0    1.2     1.6

SIZE 215*107*110mm

Weight 1.7KG

Warranty: 1 Year

BK373 Automatic Soldering Wire Feeder Motor

Product Description

Features

+ Auto soldering wire feeding system ,suitable for various soldering station

+ Auto and manual ways of Solder-wire feeding are optional,adjusted by knob, feeding speed,volumes,

interval time adjustable.

+ Auto and manual two ways of feed controlling

+ Pedal swith and manual switch to choose from

Specifications

Model

Power Supply

Power consumption

Motor

Feed speed

Volume

Interval time

Feed methods

Wire Dia.

Dimension

Weight

pare parts

373-0 Feeding gears

373-1 Auto feeding hose assembly

373-2 Manual feeding hose assembly

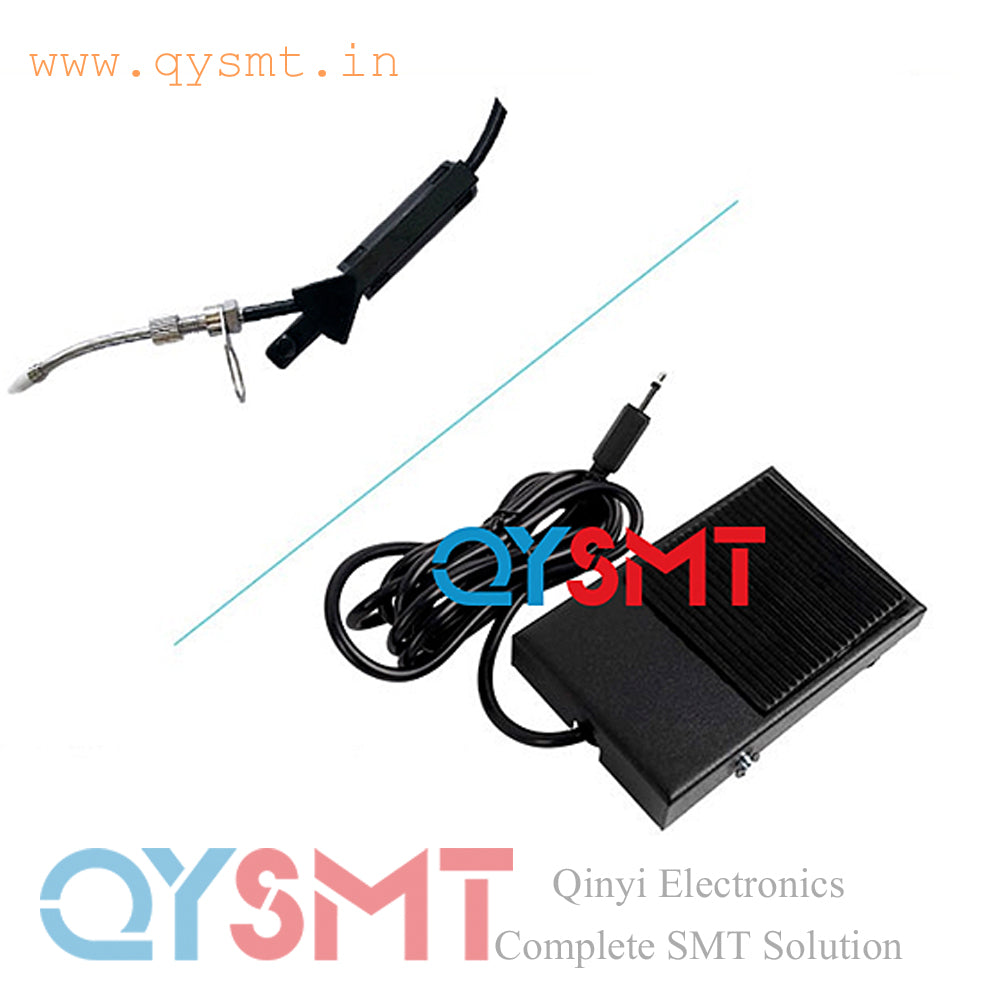

370-5 Pedal switch

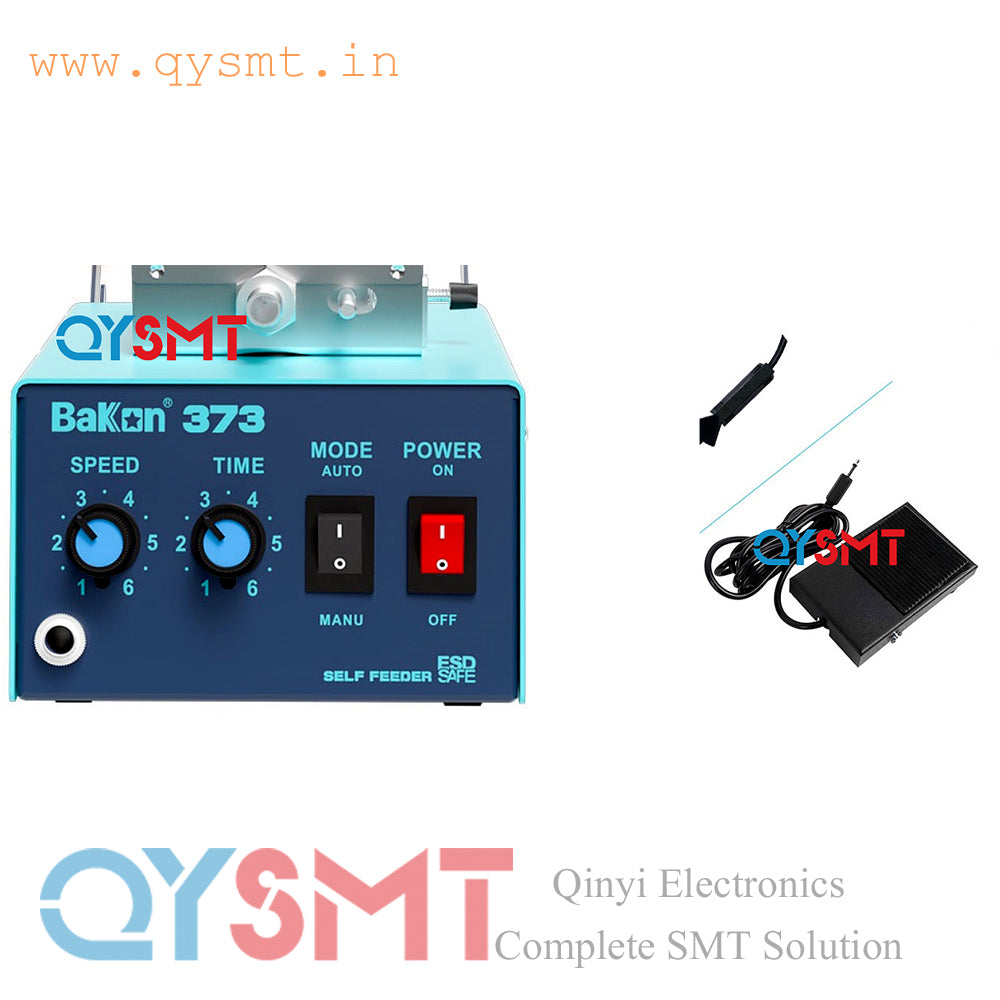

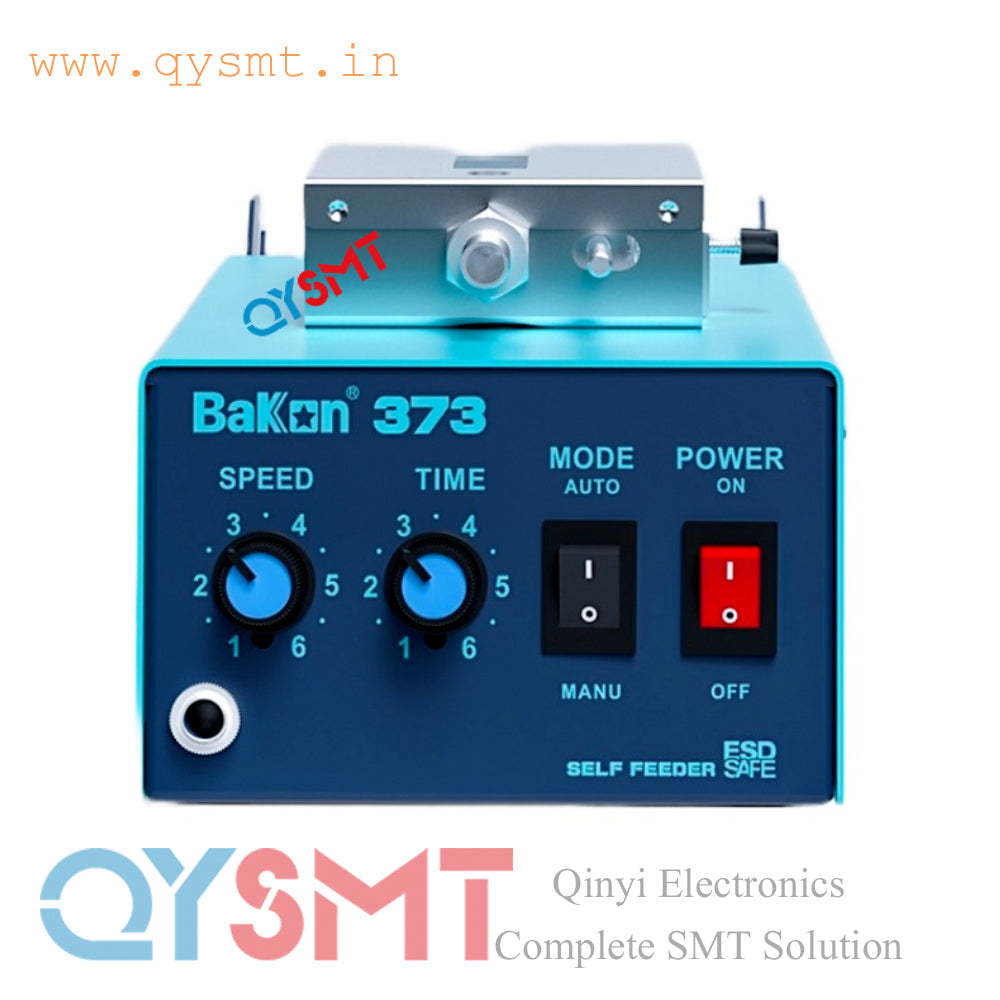

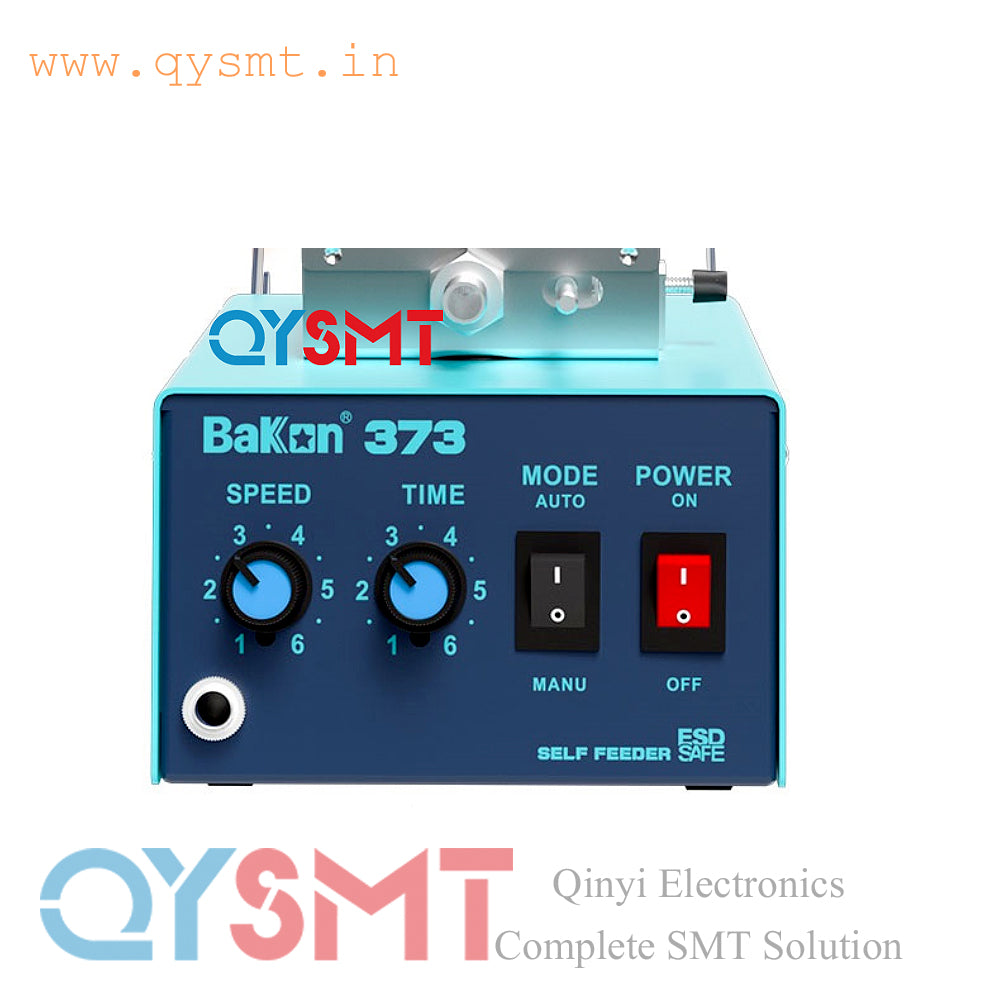

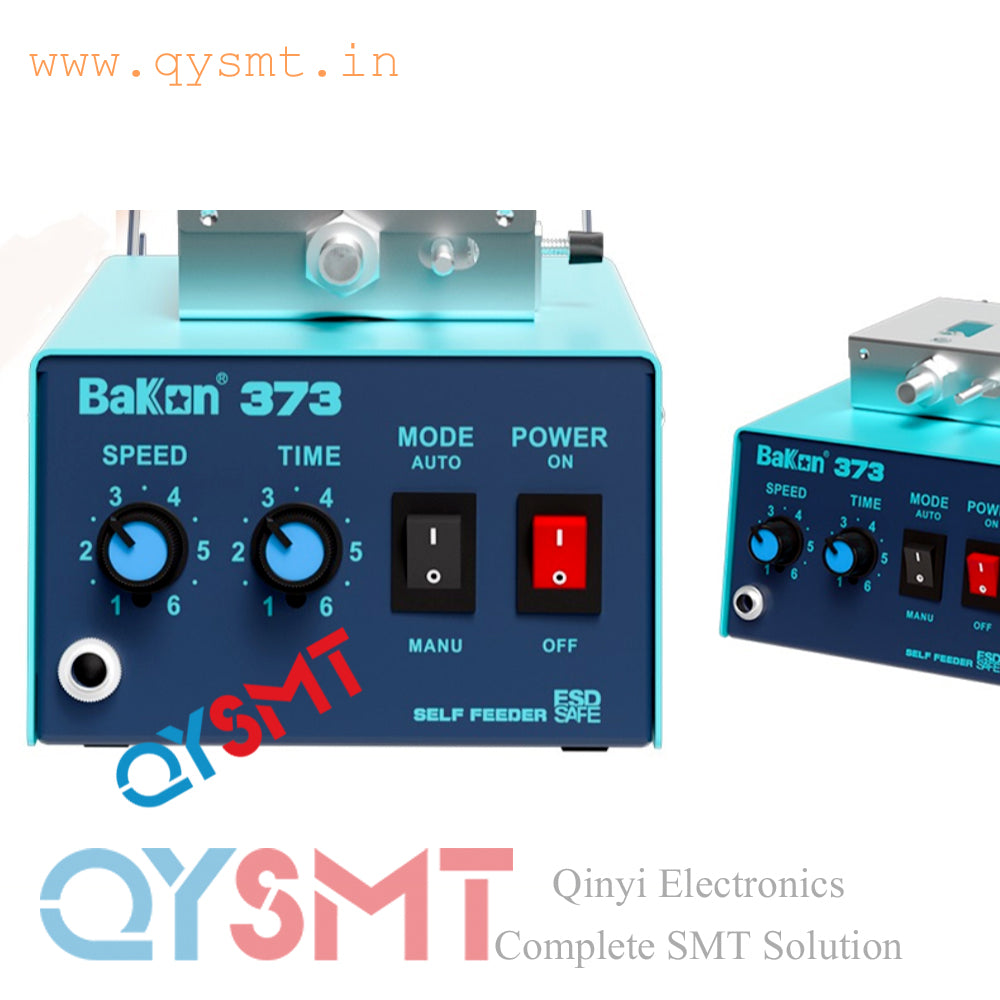

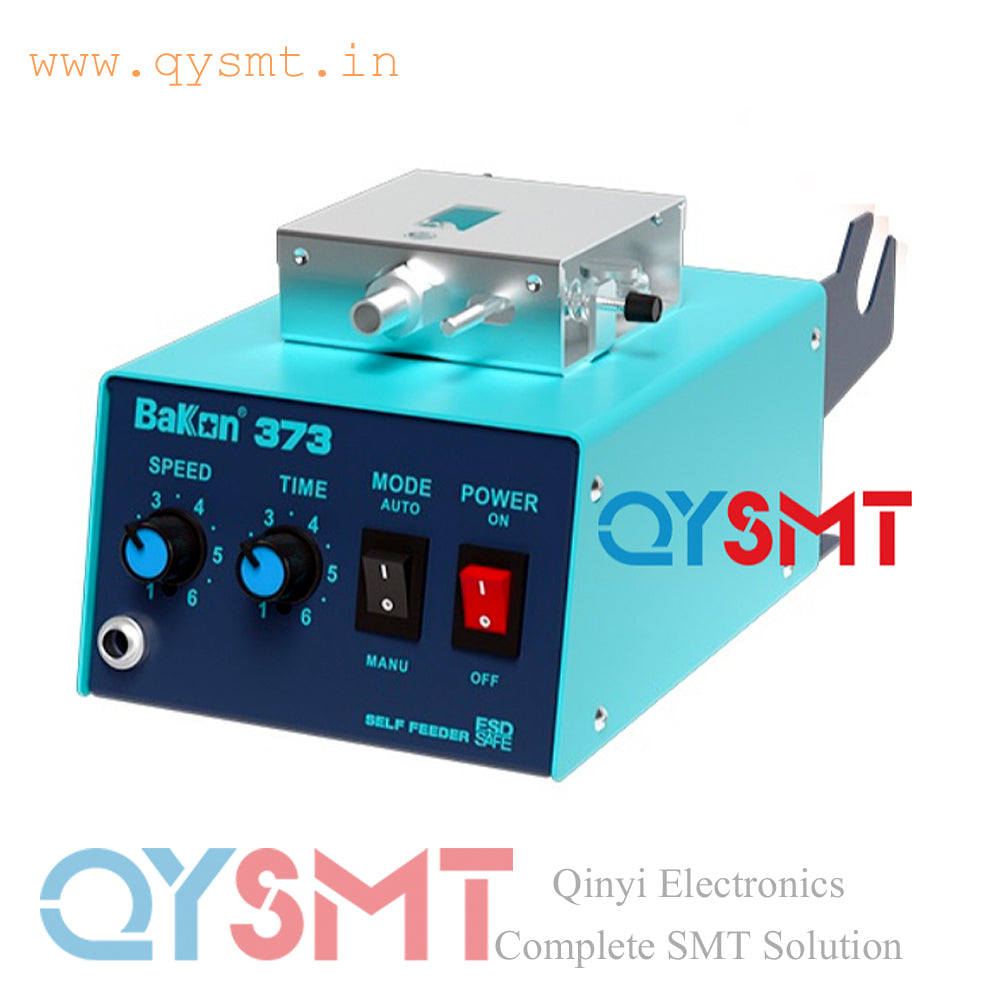

Auto wire feeder pictures display

BK373

AC 220V 50HZ AC 110V 60HZ

SW

Step motor

14mm/s-35mm/s

0-123mm

0-3.55

Auto/Manual

0.6, 0.65, 0.8, 1.0, 1.2, 1.6

215(L)x107(W)x110(H)mm

1.5kg

Bakon BK373 Automatic Solder feeding system

Model No. BK373

Voltage 220VAC,50Hz

Feeder speed 14-35mm/s

Motor power DC24V 3.2W

Sending amount of tin: 0-120mm

Return amount of tin adjustable

Tin wire diameter: 0.6    0.65    0.8     1.0    1.2     1.6

SIZE 215*107*110mm

Essential detailsMachine Type:Soldering StationPlace of Origin:Guangdong, ChinaBrand Name:BAKONWarranty:1 YearVoltage:AC220V 50HZ,AC110V 60HZDimensions:215*107*110mmUsage:solderingAfter-sales Service Provided:Online supportWeight:1.5kgSending tin speed:14~35mm/sTin feeding amount:0~123MMTin wire diameter:0.6 0.65 0.8 1.0 1.2 1.6Tin delivery time:0~3.5SPower consumption:5WSupply AbilitySupply Ability1000 Set/Sets per MonthPackaging & deliveryPackaging DetailsSelling Units :2.5KG/pcs, 26*22*14cm/pcs ,8pcs/carton, 53*45*30cm/pcs, 19.8KG/carton
Package Type:3-7 weekdays wire feederPortShenzhen
