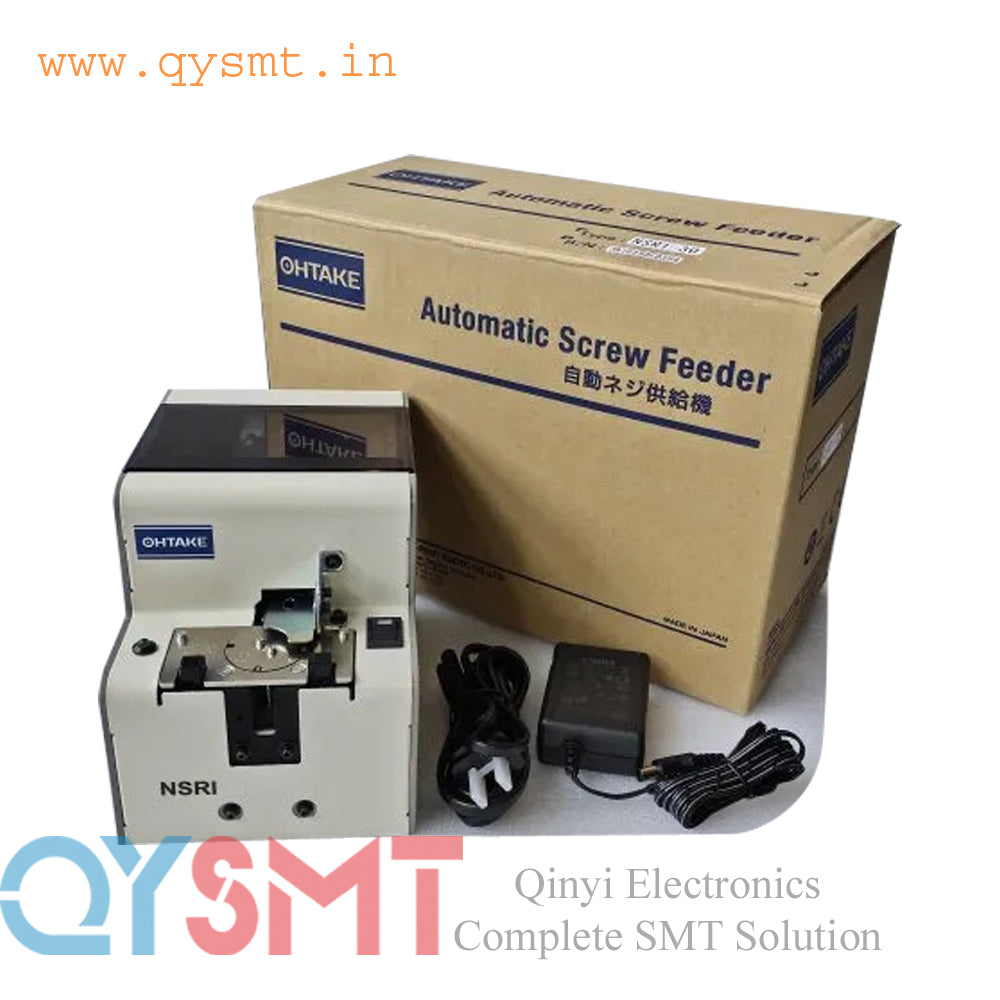

Automatic Screw Feeder NSRI

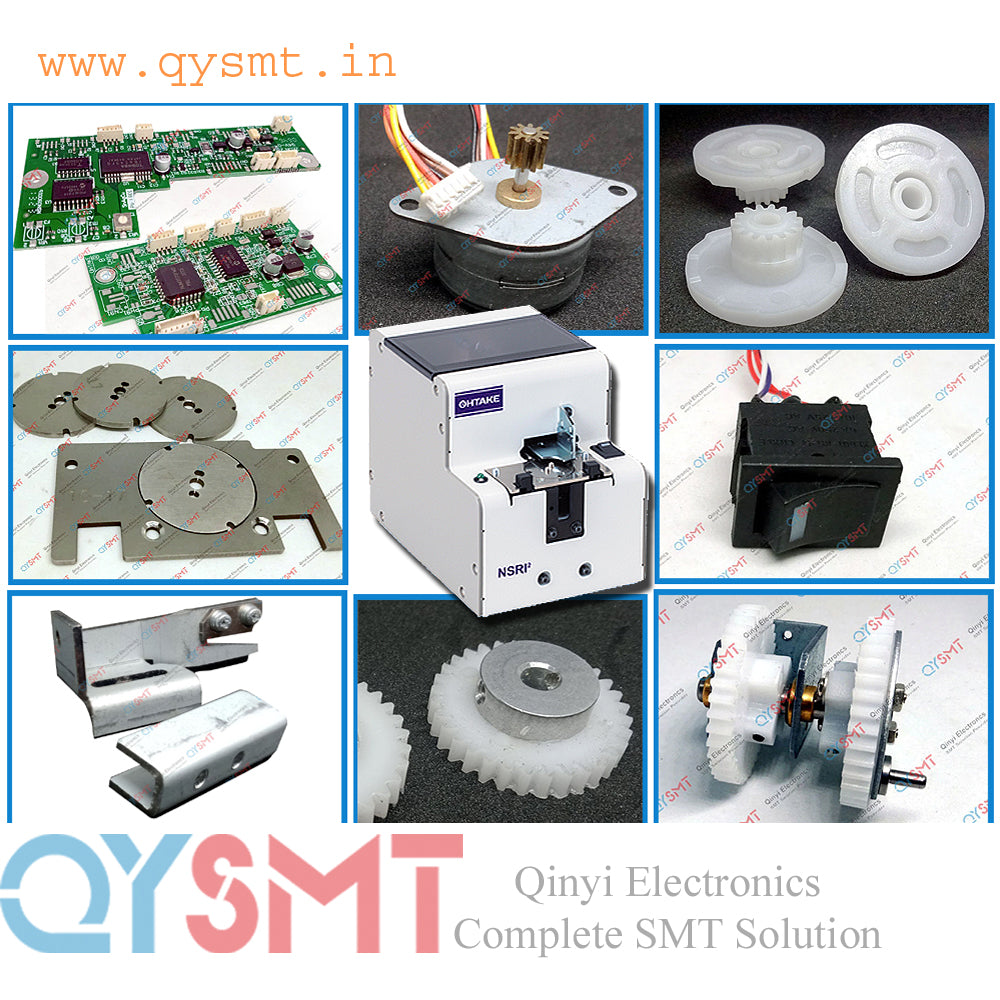

Automatic Screw Feeder NSRI And Spare Parts

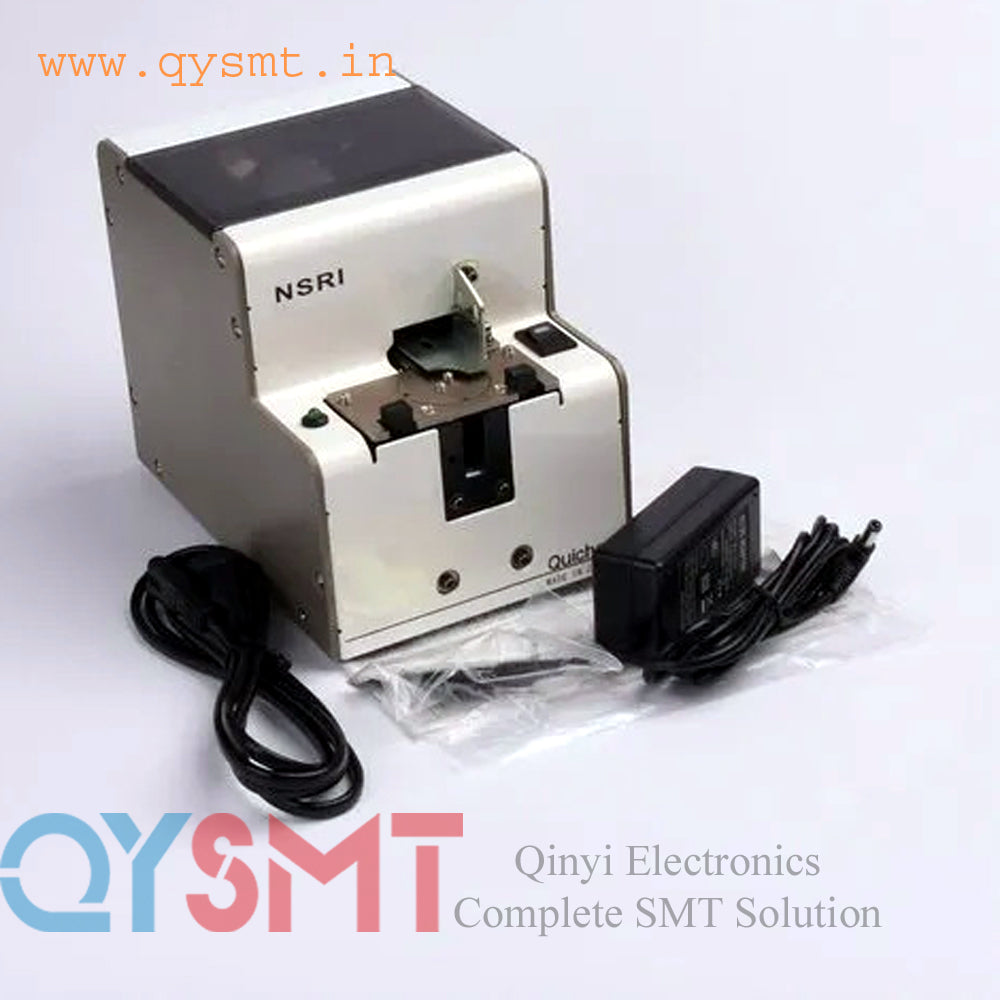

NSRI SCREW feeder
Screw feeder motor
screw feeder double gear
screw feeder spur gear
screw feeder sensor
screw feeder brush
screw feeder spring
screw feeder side screw
screw feeder rail adjustment screw
screw feeder rail adjustment plate
screw feeder on/off switch
screw feeder indictor light
screw feeder wire connectors
screw feeder power supply
screw feeder holder cap
screw feeder screw rail
screw feeder control PCB

Operation ○ Loading the screws (cf. p7) ・Open the upper cover. When the chamber plates are at their lowest position, load screws up to 2 ～ 3mm below the rail groove surface. ・ Check that the screws are not loaded so as to cover the upper portion of the inclined plates. [CAUTION] Do not overload the chamber with screws otherwise it may cause a malfunction or damage the machine. ○ Turning ON the power ・Plug the attached AC adapter into the main body and power outlet. ・When the power switch is turned ON, the power switch lamp lights up. The scooping block starts to move up and down. The rail starts to vibrate and the escaper starts rotating. ・Screws move along the rail towards the rotating escaper which selects one screw at a time. ・The escaper rotates and deposits the selected screw at the pick up site. ・At this moment, the sensor detects a screw and the screw sensor LED lights up and then the operation stops. ・Until a screw is picked up, the machine stops operating. ・When a screw is picked up, the sensor detects this and the sensor LED light goes off and the machine resumes operation. 　　[CAUTION] Do not use any AC adapter other than the one included with this unit, as it may cause damage. ５-10．Maintenance A dirty rail groove may interfere with the screw transport speed. Clean the dirty rail with a soft, clean cloth dipped in alcohol. If cleaning is difficult, remove the rail from the machine and clean the rail groove. Before removing the rail from the machine, be sure to turn off the power supply and take the screws out of the chamber. If there is any dirt or a flaw in the rail groove that may cause an impediment in use, we recommend the user to clean or replace the rail

PARTS ADJUSTMENTS AND REPLACEMENTS The brush and main motor are consumable parts. When using a different diameter of screw, the following items must be replaced: rail, escaper and robot escaper guide.These parts may be ordered separately. The replacing and adjusting procedures are described below. When replacing any parts, a fine adjustment is required. Make these fine adjustments by reading the corresponding contents carefully. Before replacing any parts, be sure to remove all the screws from the chamber. 6- １．Replacing and Adjusting the Brush If the brush is too worn to sweep screws off of the rail, replace it. A brush with harder bristles, than the standard brush, is available as an option. ・Turn ON and OFF the power switch in order to set the brush at the position shown in the figure on the right and detach the brush assembly. ・The brush assembly can be disassembled as shown in the figure on the right. ・For assembly, reverse the disassembling procedure. ・After completing the assembly, check that the front part of the brush doesn’t come in contact with the passing plate. The ideal clearance is 0
